Components And Components Location: Components

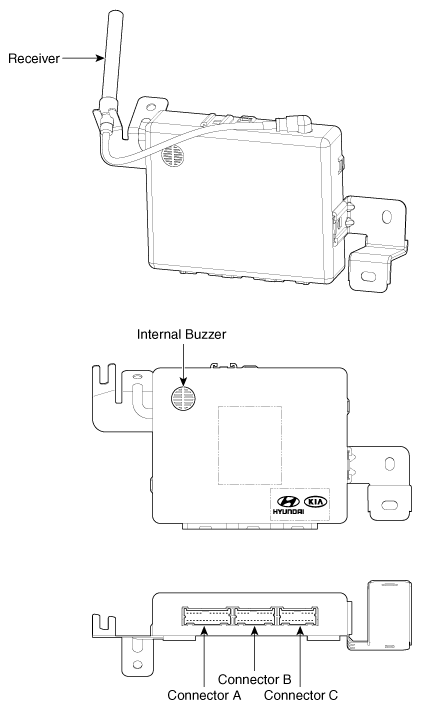

Fig 1: Body Control Module Components Location

Courtesy of KIA MOTORS AMERICA, INC.

* Internal Buzzer: Parking assist system buzzer

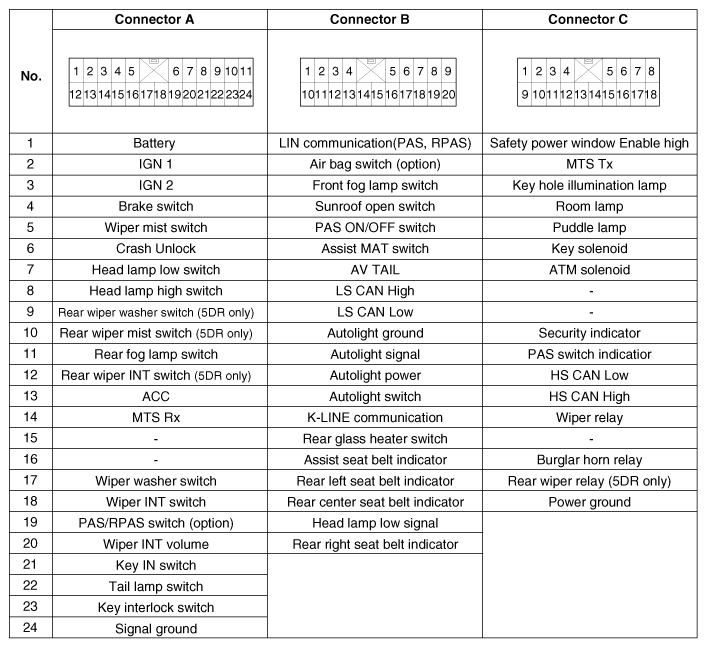

Fig 2: Body Control Module Connector Terminal Description Chart

Courtesy of KIA MOTORS AMERICA, INC.
