Vehicle S/W Management

CAUTION: In case of replacing HECU, perform following procedures;

■ Variant Coding

Ignition "OFF"
Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON"
Select "Vehicle S/W management" on KDS/GDS.
Perform "VARIANT CODING " in "Vehicle S/W management" with KDS/GDS.

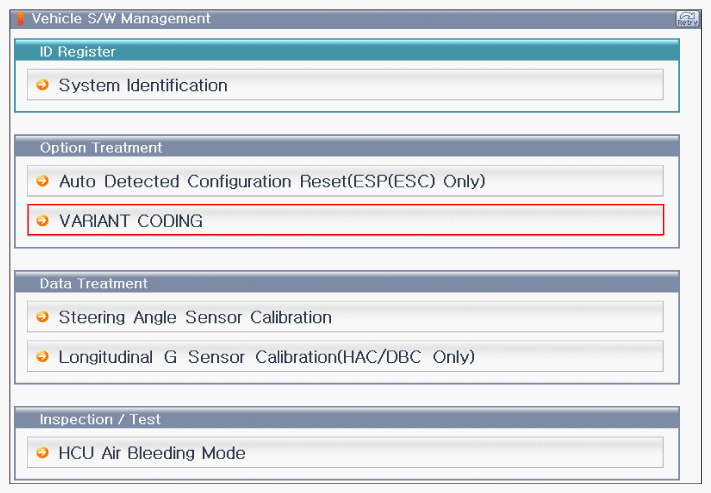

Fig 1: Scantool Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

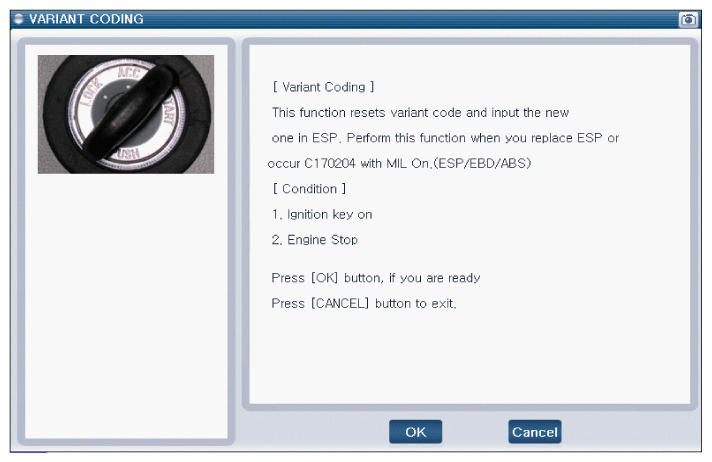

Fig 2: Scantool Display - Variant Coding
Courtesy of KIA MOTORS AMERICA, INC.

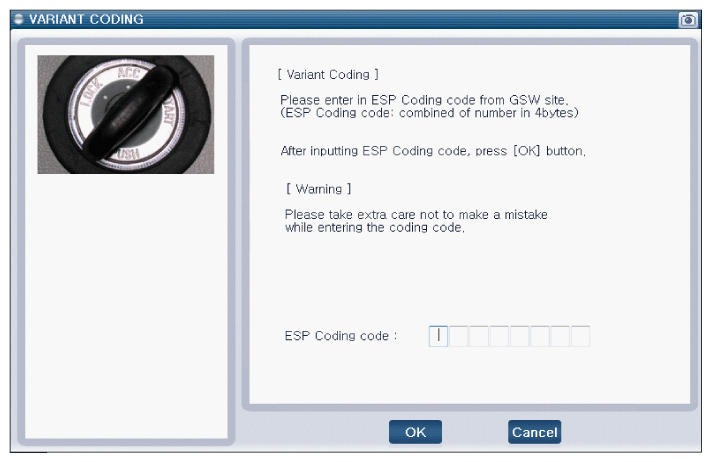

Fig 3: Scantool Display - Variant Code Input
Courtesy of KIA MOTORS AMERICA, INC.

■ Longitudinal G Sensor Calibration (HAC/DBC Only)

Ignition "OFF"
Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON"
Select "Vehicle S/W management" on KDS/GDS.
Perform "Longitudinal G Sensor Calibration (HAC/DBC Only)" in "Vehicle S/W management" with KDS/GDS.

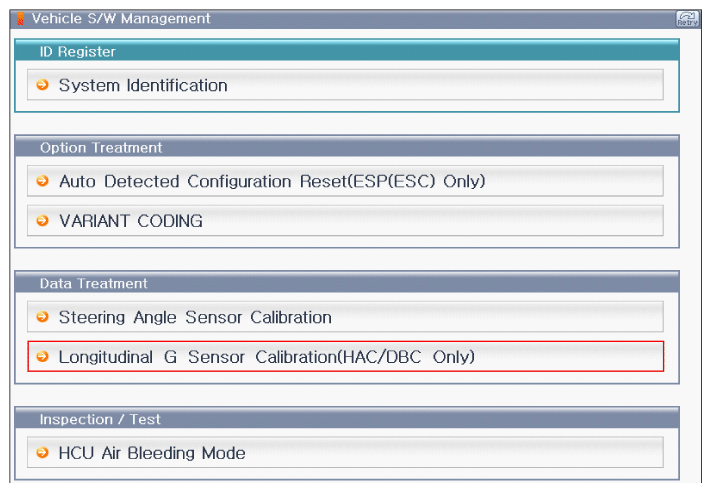

Fig 4: Scantool Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

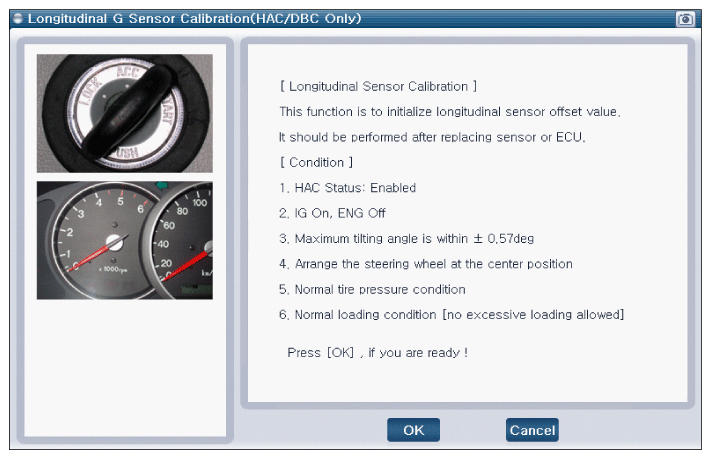

Fig 5: Scantool Display - Longitudinal G Sensor Calibration (HAC/DBC Only)
Courtesy of KIA MOTORS AMERICA, INC.

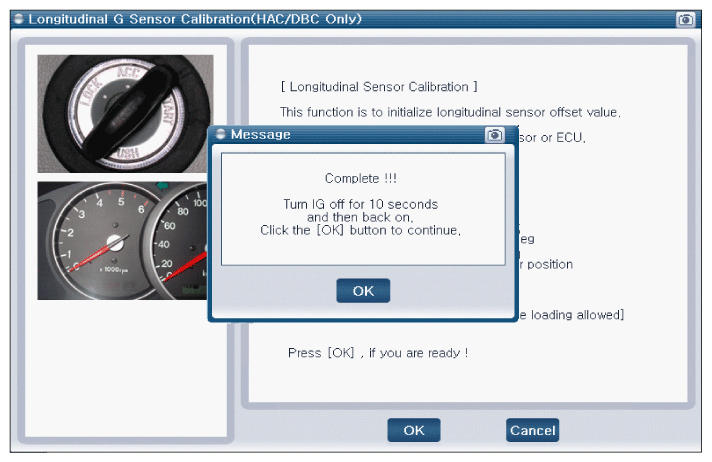

Fig 6: Scantool Display - Message Complete
Courtesy of KIA MOTORS AMERICA, INC.
