Monitor KDS Data

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Ignition "OFF"
Connect KDS to Data Link Connector (DLC).
Ignition "ON" & Engine "ON"
Select "ABS/ESC/ESP" system
Monitor "Wheel Speed Sensor" parameters in "Current Data" with KDS.
Specification: Wheel speed sensor parameter value changes in according to actual wheel speed sensor.

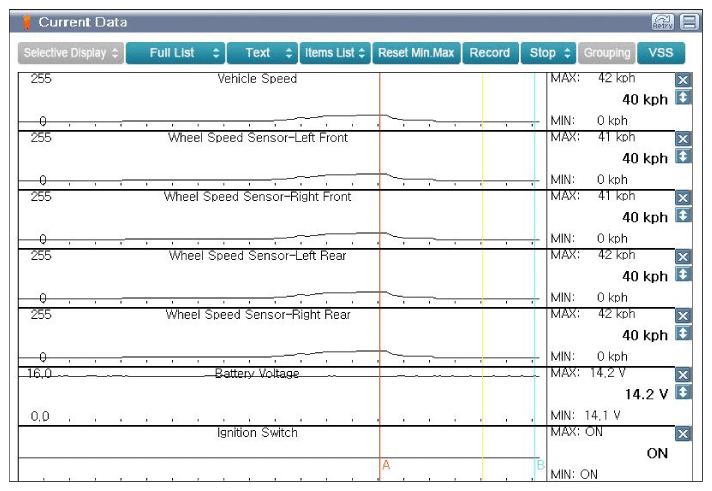

Fig 1: Scantool Display - Wheel Speed Sensor Parameters In ABS/ESC/ESP/ESP System
Courtesy of KIA MOTORS AMERICA, INC.
Is the parameter displayed within specification?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Check for CAN related fault in ABS/ESC/ESP system.
- If CAN related fault is present in ABS/ESC/ESP system, perform applicable troubleshooting steps.
- Carefully re-do this troubleshooting guide steps.
