Neutralization Status Check

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

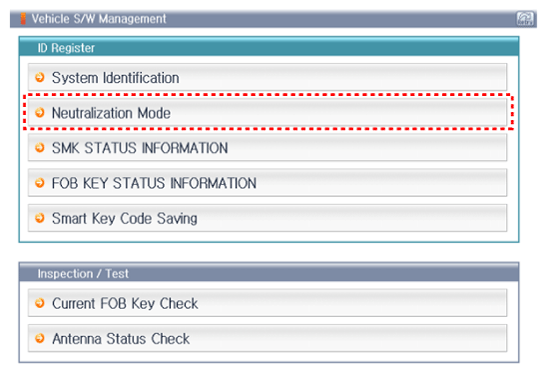

Fig 1: Screen Display - Select Neutralization Mode

Courtesy of KIA MOTORS AMERICA, INC.

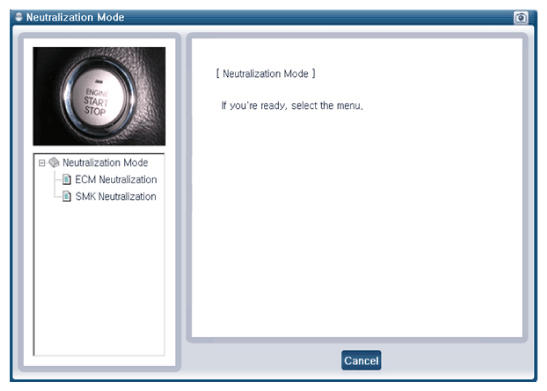

Fig 2: Screen Display - Select Menu

Courtesy of KIA MOTORS AMERICA, INC.

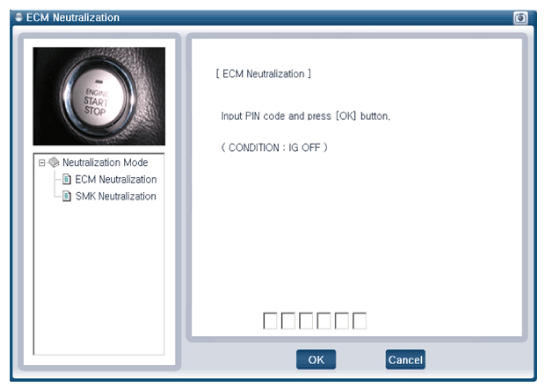

Fig 3: Screen Display - Input PIN Code And Press OK Button (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

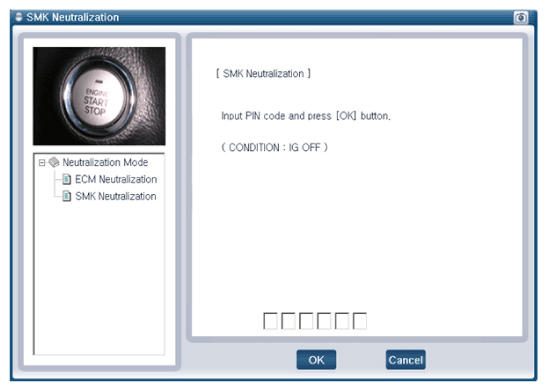

Fig 4: Screen Display - Input PIN Code And Press OK Button (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
