Liftgate Open Switch

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Check for continuity between the liftgate open switch terminals.

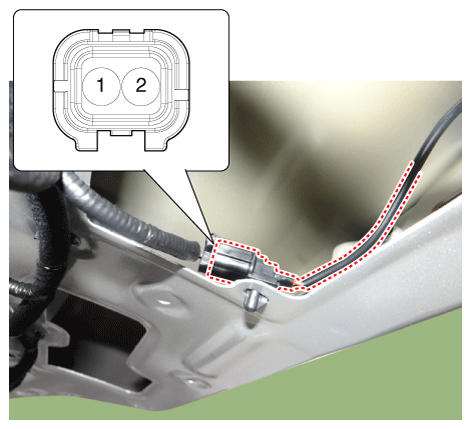

Fig 1: Checking Continuity Between Liftgate Open Switch Terminals
Courtesy of KIA MOTORS AMERICA, INC.
If continuity is not specified, inspect the switch

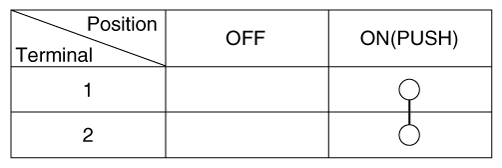

Fig 2: Liftgate Open Switch Terminal Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
