Liftgate Open Switch

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the liftgate latch.
(Refer to Body - "LIFTGATE LATCH ")
Disconnect the liftgate open switch connector (A).

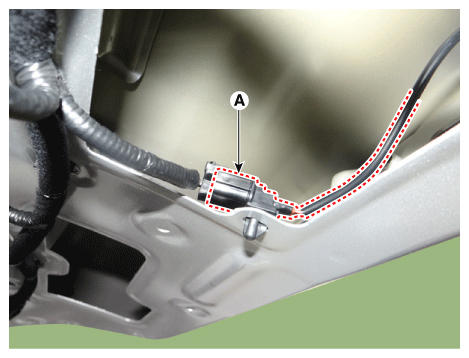

Fig 1: Locating Liftgate Open Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the liftgate open switch assembly (A) after pushing mounting hooks.

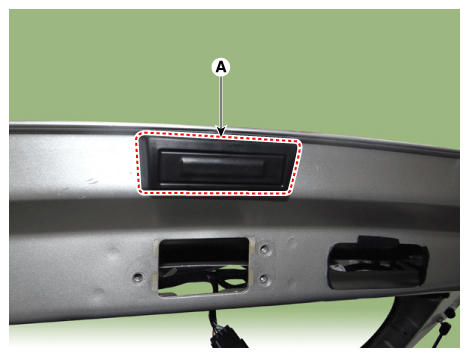

Fig 2: Locating Liftgate Open Switch Assembly (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

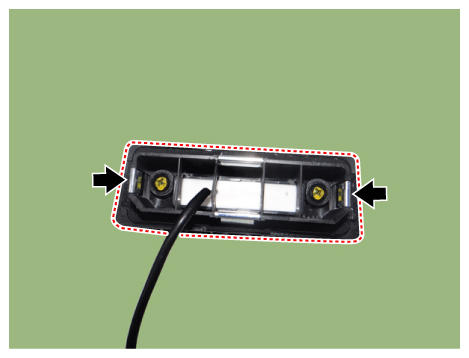

Fig 3: Locating Liftgate Open Switch Assembly (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
