Components And Components Location: Component
WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

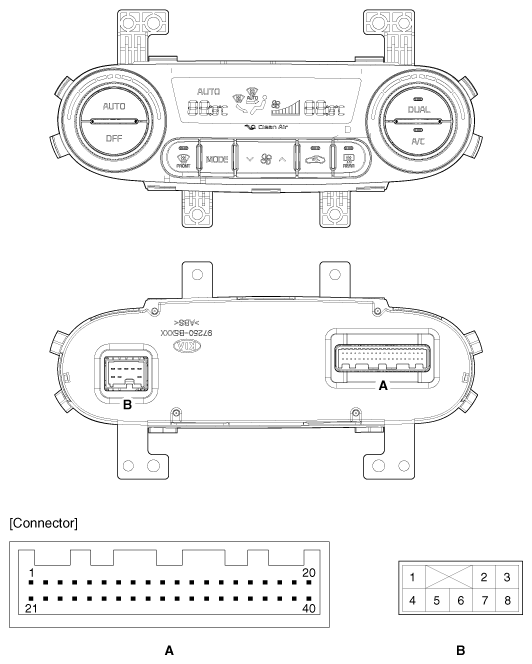

Connector Pin Function
| Connector | No. | Description |
|---|---|---|
| A | 1 | Illumination (+) (Tail) |
| 2 | Sensor REF (+5V) | |
| 3 | Defog actuator (Open) | |
| 4 | Defog actuator (Close) | |
| 5 | Mode actuator (Vent) | |
| 6 | Mode actuator (Defrost) | |
| 7 | Mode actuator feedback | |
| 8 | Intake actuator (Fresh) | |
| 9 | Intake actuator (Recirculation) | |
| 10 | Intake actuator feedback | |
| 11 | Temperature actuator (Cool) - Driver | |
| 12 | Temperature actuator (Warm) - Driver | |
| 13 | Temperature actuator feedback - Driver | |
| 14 | Temperature actuator (Cool) - Passenger | |
| 15 | Temperature actuator (Warm) - Passenger | |
| 16 | Temperature actuator feedback - Passenger | |
| 17 | C_CAN (High) | |
| 18 | C_CAN (Low) | |
| 19 | Detent OUT (+) | |
| 20 | Illumination (-) (Rheostat) | |
| 21 | Ion signal | |
| 22 | Clean signal | |
| 23 | Ionizer diagnosis | |
| 24 | Defog actuator feedback | |
| 25 | Humidity (PVM) | |
| 26 | Ambient sensor (+) | |
| 27 | In-car sensor (+) | |
| 28 | Evaporator sensor (+) | |
| 29 | ECV (+) | |
| 30 | ECV (-) | |
| 31 | Photo sensor (-) - Left | |
| 32 | Photo sensor (-) - Right | |
| 33 | HTD | |
| 34 | Rear defog switch | |
| 35 | K-Line | |
| 36 | PTC relay (Gasoline PTC only) | |
| 37 | - | |
| 38 | ISG DC | |
| 39 | - | |
| 40 | Sensor ground | |
| B | 1 | Ground |
| 2 | IGN 2 | |
| 3 | Blower motor (+) | |
| 4 | Ground | |
| 5 | FET (Gate) | |
| 6 | FET (Drain feedback) | |
| 7 | IGN 1 | |
| 8 | Battery (+) |
