Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")
Remove the steering wheel cover (A) after loosening the screw.

Fig 1: Locating Steering Wheel Cover With Screw
Courtesy of KIA MOTORS AMERICA, INC.

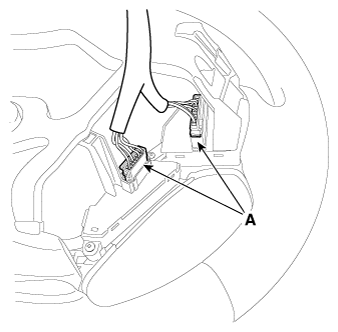

Disconnect the steering heater connectors (A).

Fig 2: Locating Steering Heater Connectors
Courtesy of KIA MOTORS AMERICA, INC.

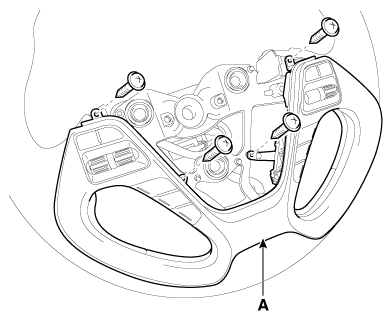

Remove the steering remote control switch assembly after loosening the mounting screws (4EA).

Fig 3: Locating Steering Remote Control Switch Assembly With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

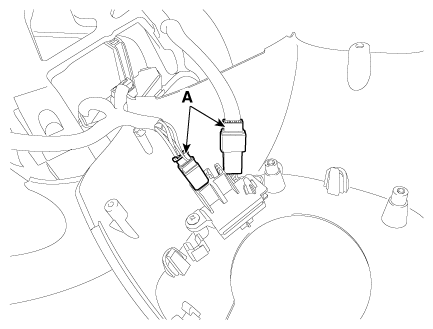

Disconnect the switch connectors (A).

Fig 4: Locating Switch Connectors
Courtesy of KIA MOTORS AMERICA, INC.

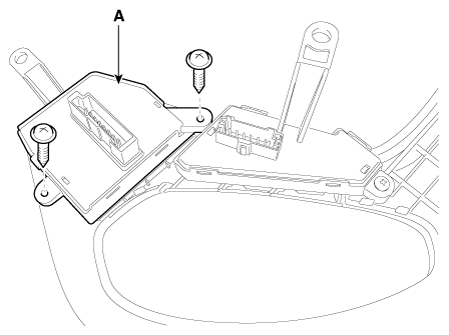

Remove the cruise control switch (A) after loosening the mounting screws.

Fig 5: Locating Cruise Control Switch With Mounting Screws

Courtesy of KIA MOTORS AMERICA, INC.
