Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. IG KEY "ON" & ENG "OFF"(Figure below)

    Warm up the engine to normal operating temperature.(Figure below)

  3. Monitor IATS related parameter on the "Current Data  " with GDS.

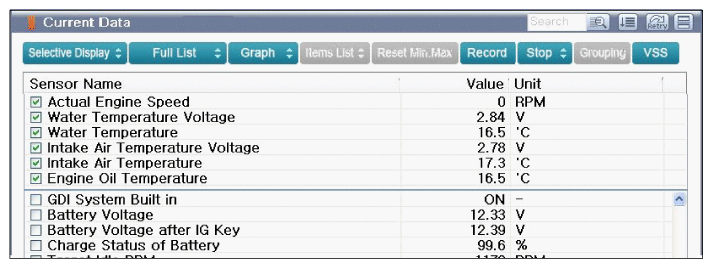

    Fig 1: Monitoring IATS Related Parameter On Current Data With GDS (1 Of 2)
    G12150159Courtesy of KIA MOTORS AMERICA, INC.

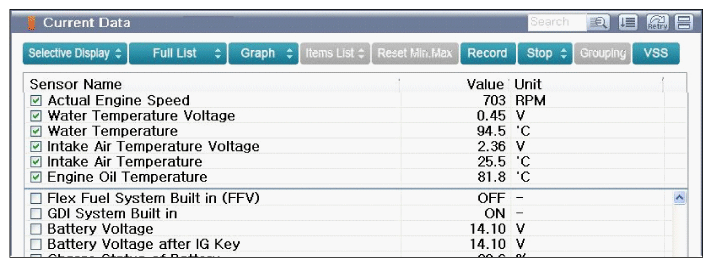

    Fig 2: Monitoring IATS Related Parameter On Current Data With GDS (2 Of 2)
    G12150160Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the "IATS" parameter displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM/PCM's connector or was repaired and ECM/PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure.

    NO
