Signal Waveform & Data

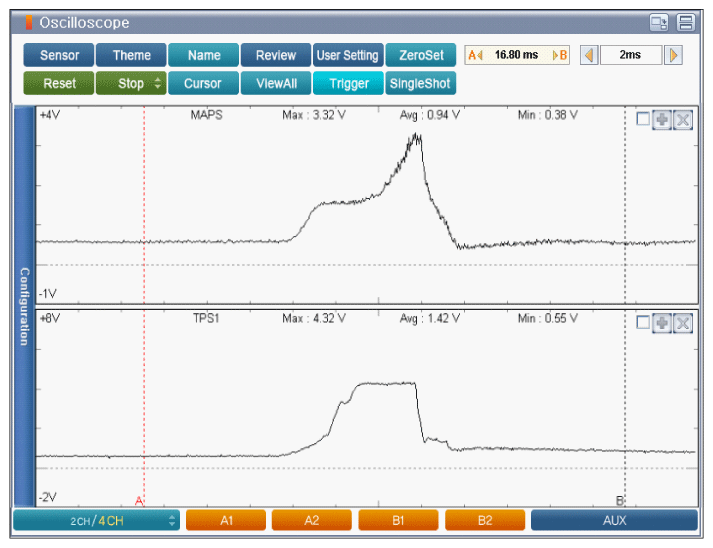

Fig 1: Scantool Display - Normal Waveforms Of MAPS & TPS1 At Engine Wide Open Throttle (WOT)
G12153438Courtesy of KIA MOTORS AMERICA, INC.
