Circuit Diagram

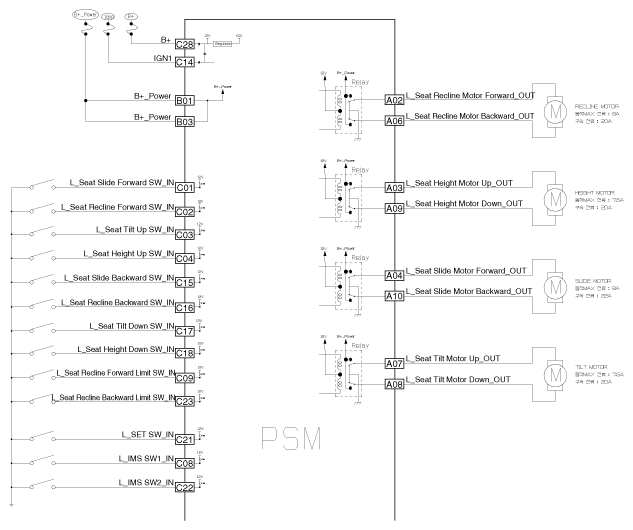

Fig 1: Memory Power Seat Unit System Circuit (1 Of 2)
G12334764Courtesy of KIA MOTORS AMERICA, INC.

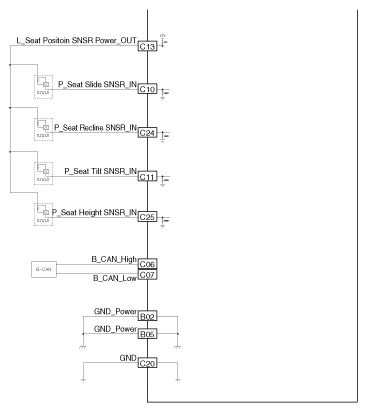

Fig 2: Memory Power Seat Unit System Circuit (2 Of 2)
G12334765Courtesy of KIA MOTORS AMERICA, INC.
