Off-Line On KDS

Confirm the ACU Variant Coding code from the GSW server after inputting the VIN to the GSW sever.

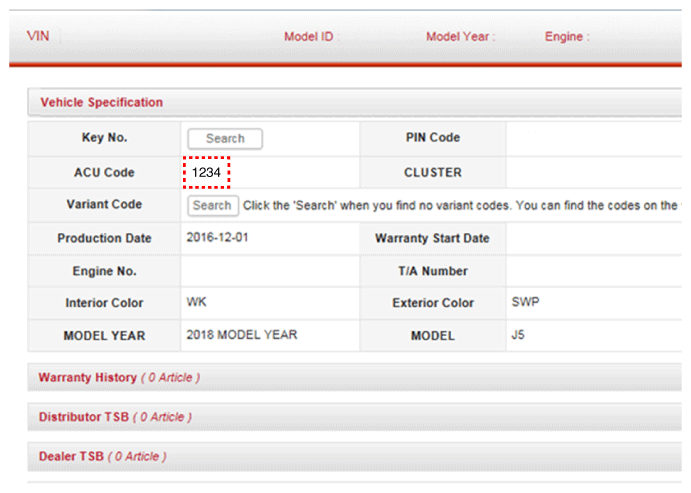

Fig 1: Screen Display - ACU Variant Coding Code From GSW Server
Courtesy of KIA MOTORS AMERICA, INC.
Switch "OFF" Ignition, and connect KDS.
With Ignition "ON" & Engine "OFF", select vehicle name and Airbag System.
Select Variant Coding Mode.
Input the ACU Coding Code.

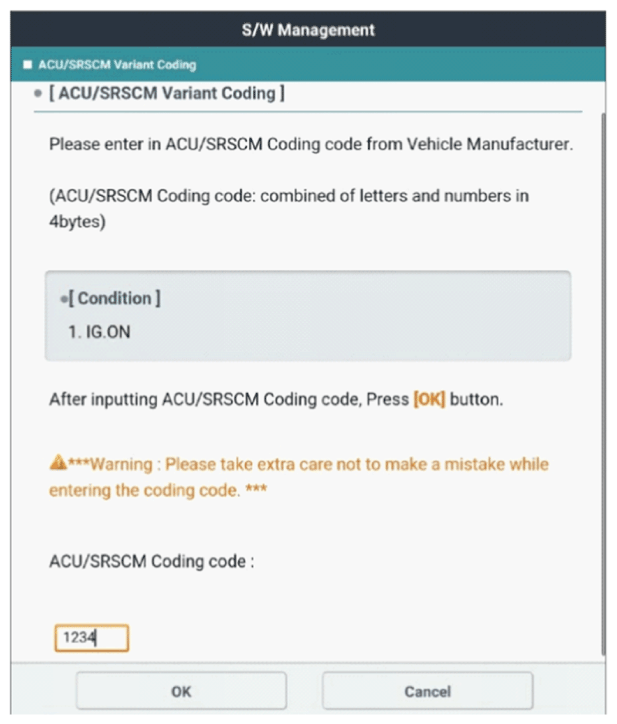

Fig 2: Screen Display - Input ACU Coding Code

Courtesy of KIA MOTORS AMERICA, INC.
