Repair Procedures: Inspection

Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.

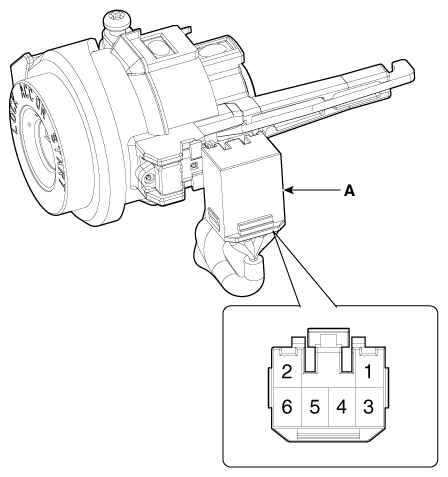

Fig 1: Locating Key Warning Switch Connector And Ignition Switch Connector (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

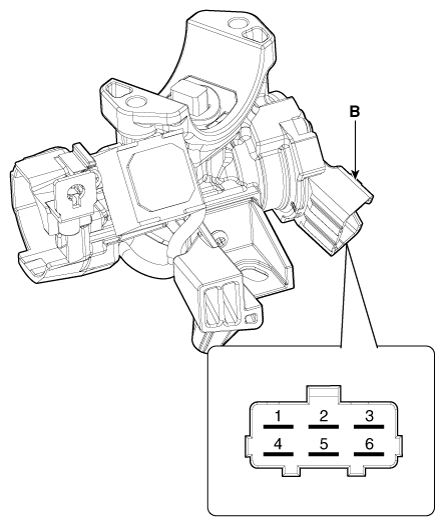

Fig 2: Locating Key Warning Switch Connector And Ignition Switch Connector (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals.
If continuity is not specified, replace the switch.

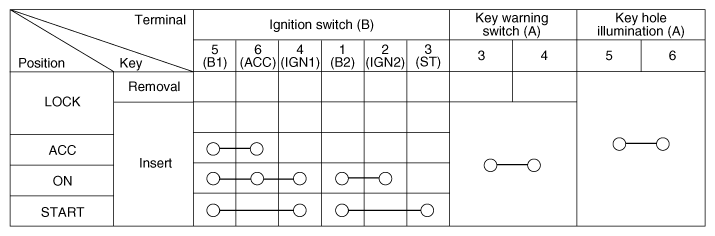

Fig 3: Switch Terminal Continuity Chart

G12334640

Courtesy of KIA MOTORS AMERICA, INC.
