Component Inspection

Inspection Condition	Inspection Procedure	Reference
Ignition "ON" and Engine "OFF".	Connect KDS/GDS to Data Link Connector (DLC). Perform "Actuation Test" of concerned component with KDS/GDS.	Fig 1

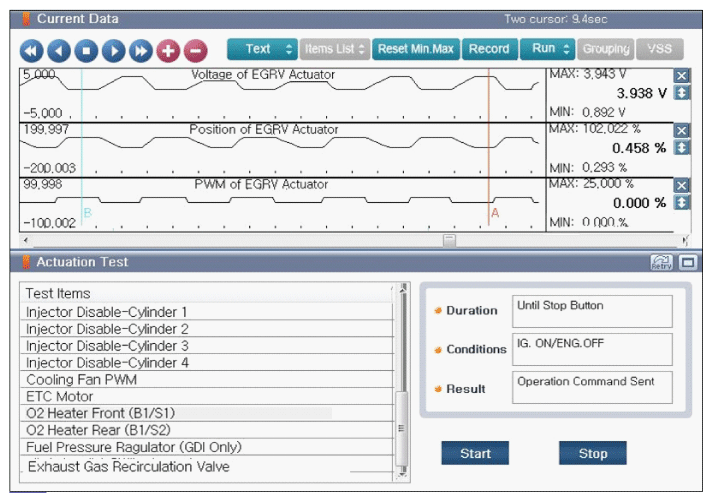

Fig 1: Screen Display - EGR Valve Current Data When Performing Exhaust Gas Recirculation Valve In Actuation Test With KDS/GDS

Courtesy of KIA MOTORS AMERICA, INC.

Good	Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good	If no problems were found with the circuits or connectors, replace the ELECTRIC EGR CONTROL VALVE and go to "VERIFICATION OF REPAIR " procedure.
