Repair Procedures: Disassembly

Disconnect the negative battery cable.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")
Loosen the screw and then remove the steering back cover.

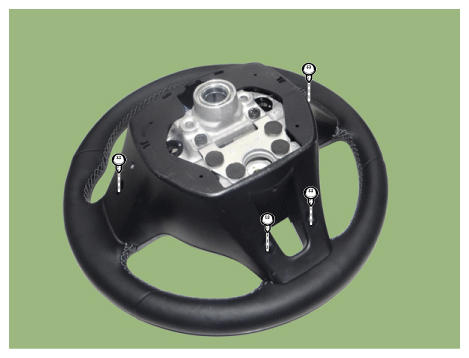

Fig 1: Removing Steering Back Cover Screw (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

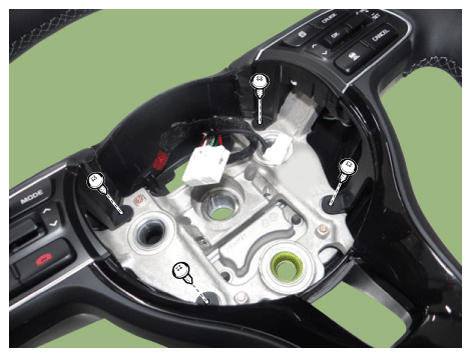

Fig 2: Removing Steering Back Cover Screw (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the remote control switch connector.

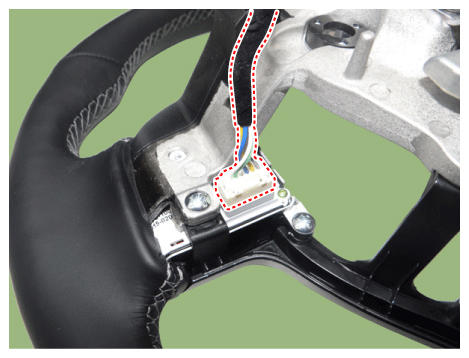

Fig 3: Disconnecting Remote Control Switch Connector (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

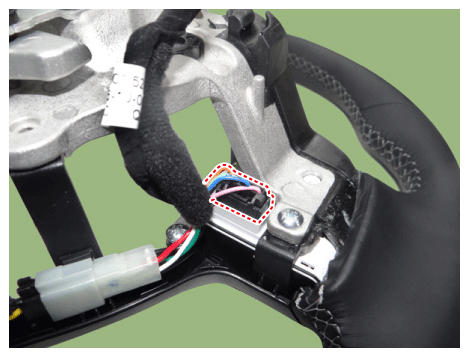

Fig 4: Disconnecting Remote Control Switch Connector (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the screw and then remove the remote control switch.

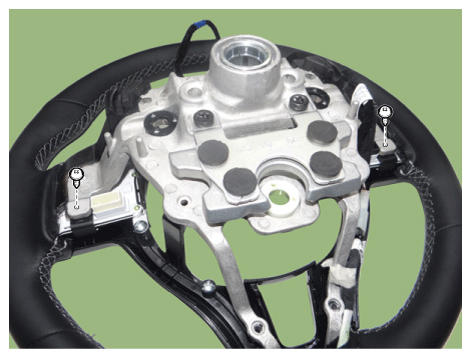

Fig 5: Removing Remote Control Switch Screw
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the heated pad connector.

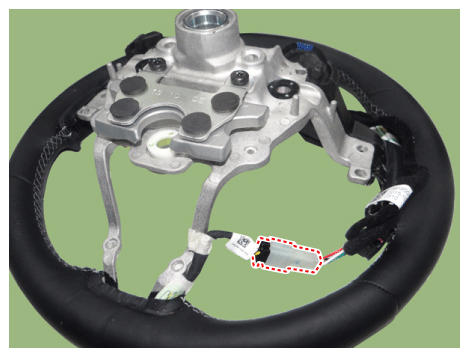

Fig 6: Disconnecting Heated Pad Connector
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the screw and then remove the remote control switch from the bezel.

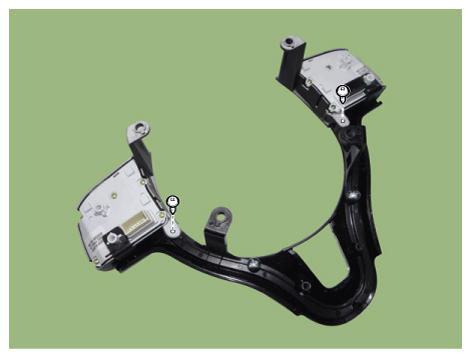

Fig 7: Removing Remote Control Switch From Bezel Screw
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolts and then remove the damper.

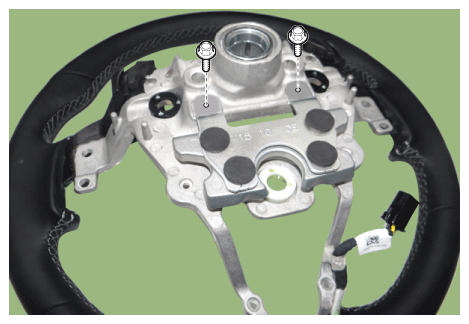

Fig 8: Removing Damper Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
