Repair Procedures: Removal

Disconnect the battery negative cable.
Turn the steering wheel so that the front wheels are facing straight ahead.
Remove the driver airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Disconnect the connector.

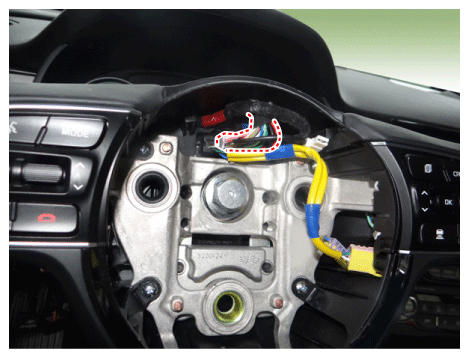

Fig 1: Disconnecting Connector
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolt (A) and then remove the steering wheel.
Tightening Torque:

39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.1 lb.ft)

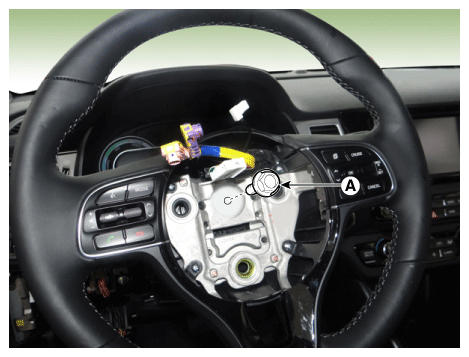

Fig 2: Removing Steering Wheel Bolt
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Do not hammer on the steering wheel to remove it; it may damage the steering column.
- Do not reuse the bolt.
Install in the reverse order of removal.
