Repair Procedures: Removal

1. Disconnect the battery negative (-) cable.
2. Disconnect the TCM connector (A).

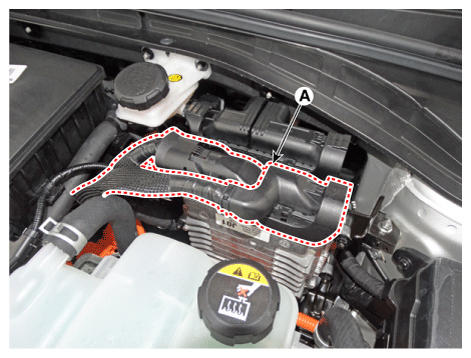

   Fig 1: Disconnecting TCM Connector

   Courtesy of KIA MOTORS AMERICA, INC.
3. Remove the TCM after loosening the nuts (A).

Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

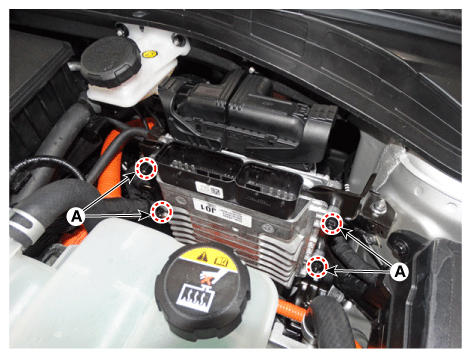

Fig 2: Removing TCM Nuts
