Operating Principle: Notes

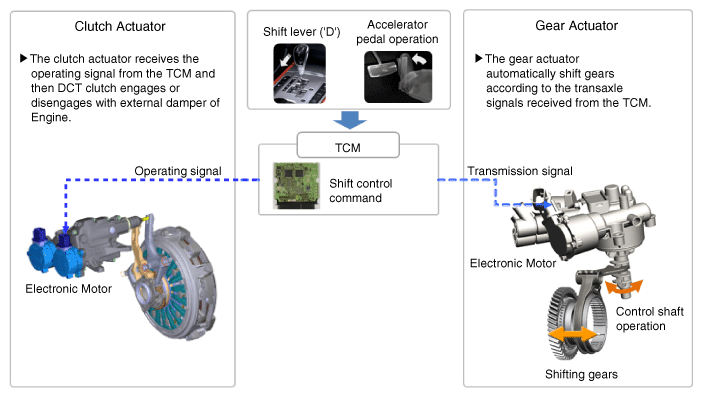

Fig 1: Dual Clutch Transmission (DCT) Control System Communication Diagram
G12329119Courtesy of KIA MOTORS AMERICA, INC.
