Repair Procedures: Installation

Check that the shift lever is placed in the "N" position.

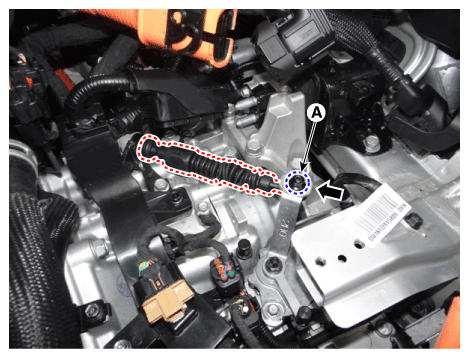

Install the shift cable retainer (A) by tightening nuts (B).
Tightening Torque:

11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

Fig 1: Removing Shift Cable Retainer
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift cable.

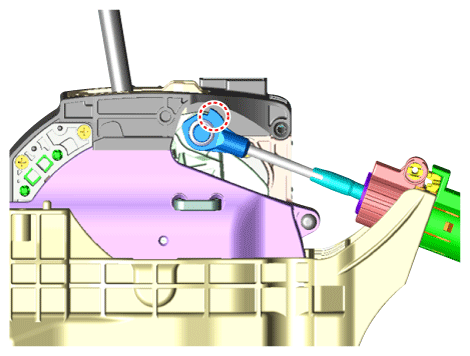

1. Install the cable socket (A).
2. Install the shift cable to the lever pin and then insert the snap pin (A).
Fig 2: Installing Cable Socket
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

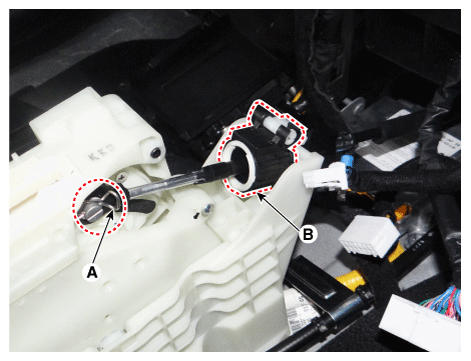

- Install the shift cable after checking the direction of projection to prevent incorrect assembly.

  Fig 3: Installing Shift Cable
  Courtesy of KIA MOTORS AMERICA, INC.

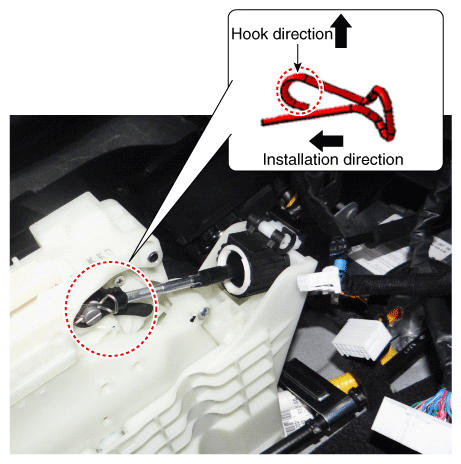

- Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
Fig 4: Installing Snap Pin With Hook Facing Upward
Courtesy of KIA MOTORS AMERICA, INC.
Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

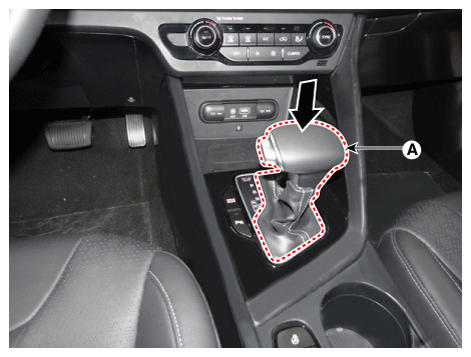

Install the knob (A) by pressing it in the direction of arrow after installing the boots to the console upper cover.

Fig 5: Installing Knob
Courtesy of KIA MOTORS AMERICA, INC.

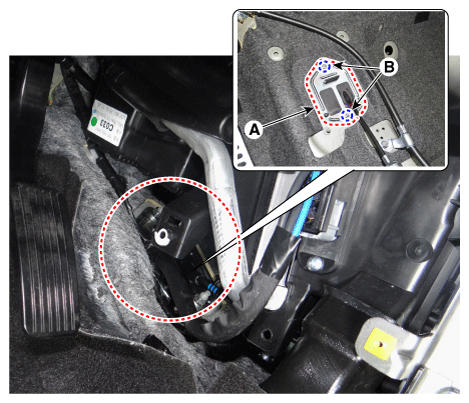

Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening Torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Fig 6: Pushing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing shift cable clip (A) must be replaced with new one. (Do not reuse it.)

Fig 7: Replacing Shift Cable Clip
Courtesy of KIA MOTORS AMERICA, INC.

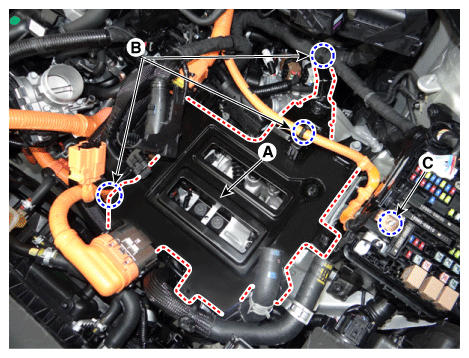

Install the HPCU tray (A).
(A) 21.6 - 23.5 N.m (2.2 - 2.4 kgf.m, 15.9 - 17.4 lb.ft)
Install the wiring mounting clips (B) to HPCU tray and the tighten the nut (C).
Tightening Torque:

(C) 10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)

Fig 8: Installing HPCU Tray
Courtesy of KIA MOTORS AMERICA, INC.

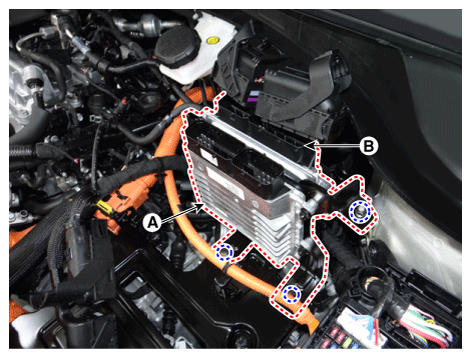

Install the TCM (A) and ECM (B).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 9: Installing TCM And ECM
Courtesy of KIA MOTORS AMERICA, INC.

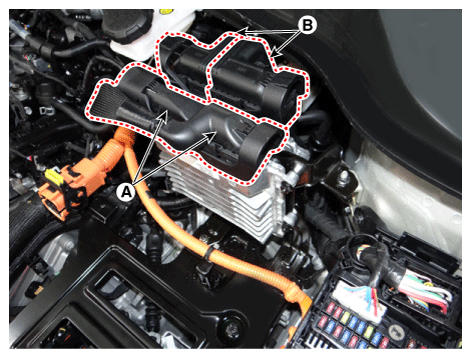

Connect the TCM connector (A) and ECM (B) connector.

Fig 10: Connecting TCM Connector And ECM Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install the Hybrid Power Control Unit (HPCU) assembly.
(Refer to Hybrid Control System - "HYBRID POWER CONTROL UNIT (HPCU) ")
Refill the hybrid motor cooling system with coolant.
(Refer to Hybrid Motor System - "COOLANT ")
Connect the high voltage circuit.
(Refer to Dual Clutch Transmission System - "HIGH VOLTAGE SHUT-OFF PROCEDURE ")
