Repair Procedures: Inspection

Remove the memory power seat connector.

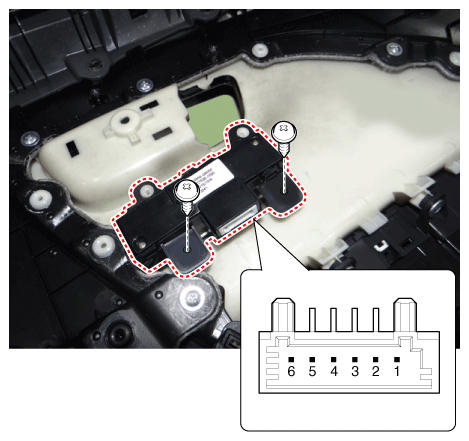

Fig 1: Locating Memory Power Seat Connector
Courtesy of KIA MOTORS AMERICA, INC.
When each switch is pressed, check the electricity flow between memory power seat switch connector and grounding, and if the electricity does not match the specification, replace the switch.

Fig 2: Memory Power Seat Switch Terminal Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
