Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. After replacing the concerned component.
  2. Ignition "ON" and Engine "OFF".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with GDS/KDS.
 Fig 1 to Fig 3

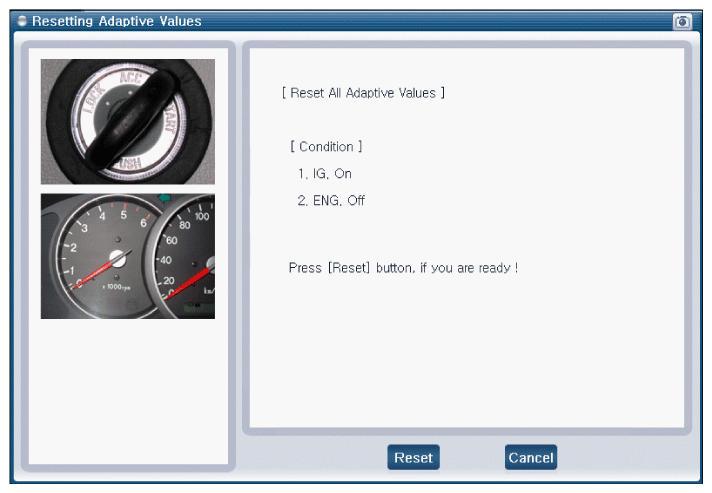

Fig 1: Screen Display - Resetting Adaptive Values Function - Step 1 To 2 (1 Of 2)
G12325197Courtesy of KIA MOTORS AMERICA, INC.

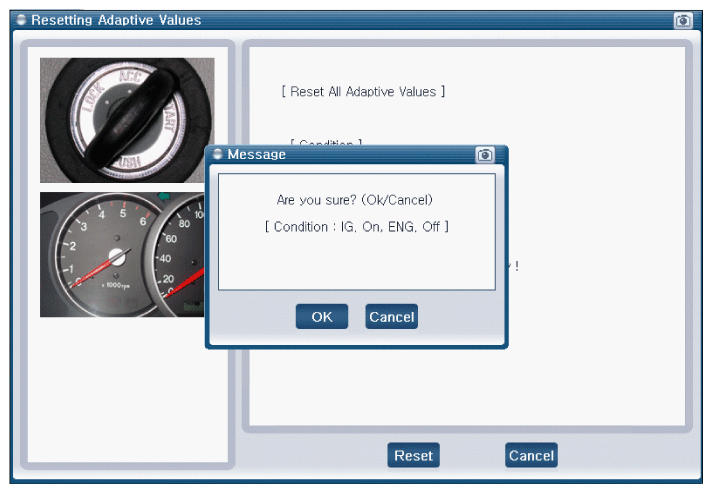

Fig 2: Screen Display - Resetting Adaptive Values Function - Step 1 To 2 (2 Of 2)
G12325198Courtesy of KIA MOTORS AMERICA, INC.

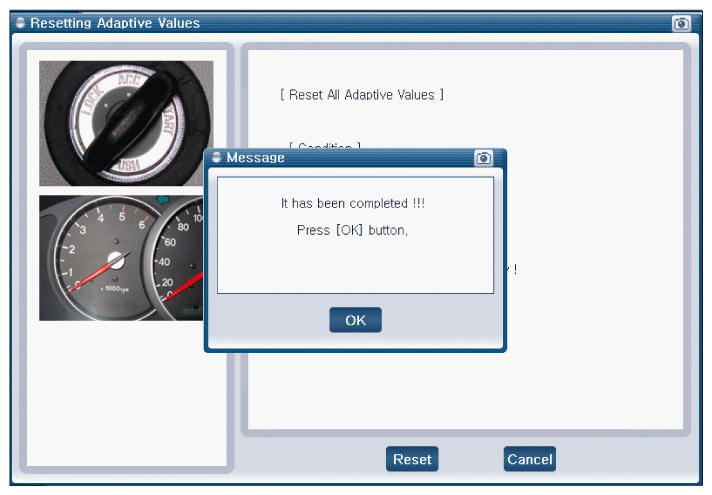

Fig 3: Screen Display - Resetting Adaptive Values Function Completed
G12325199Courtesy of KIA MOTORS AMERICA, INC.
