Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Dual Clutch Transmission Control System
>>
DCT Control Module (TCM)
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

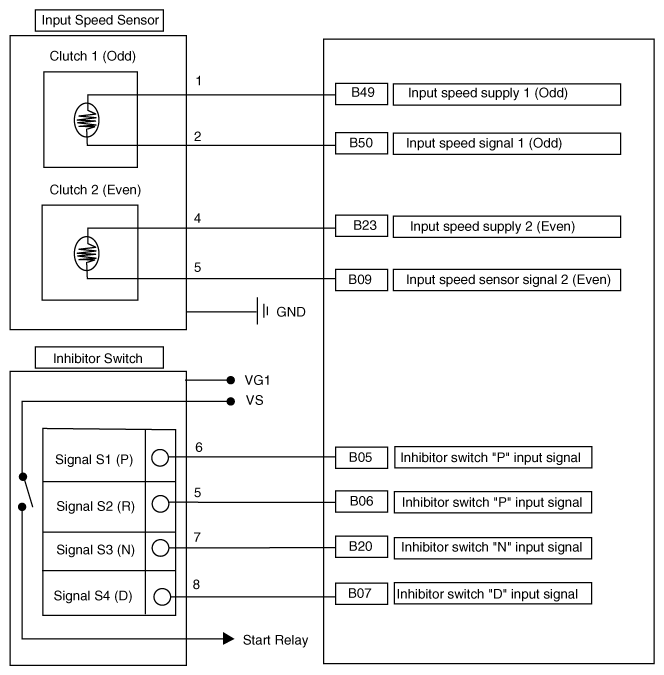

Fig 1: DCT Control Module System Circuit (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

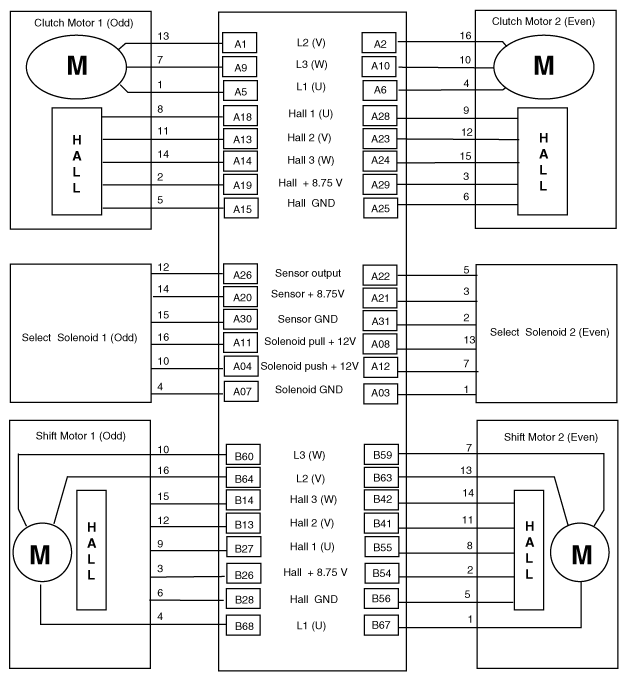

Fig 2: DCT Control Module System Circuit (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
