Component Location

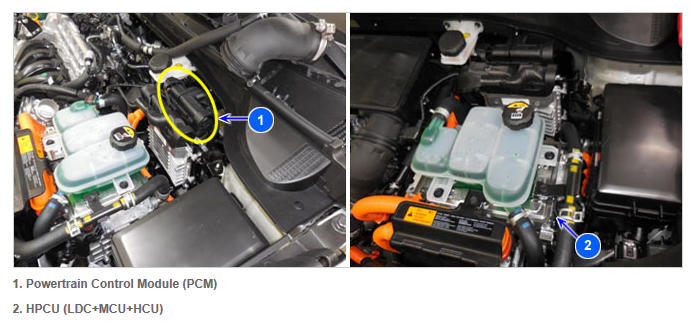

Fig 1: Locating PCM (Powertrain Control Module) And HPCU (LDC+MCU+HCU) Components
G12330533Courtesy of KIA MOTORS AMERICA, INC.
