Components and Components Location: Component

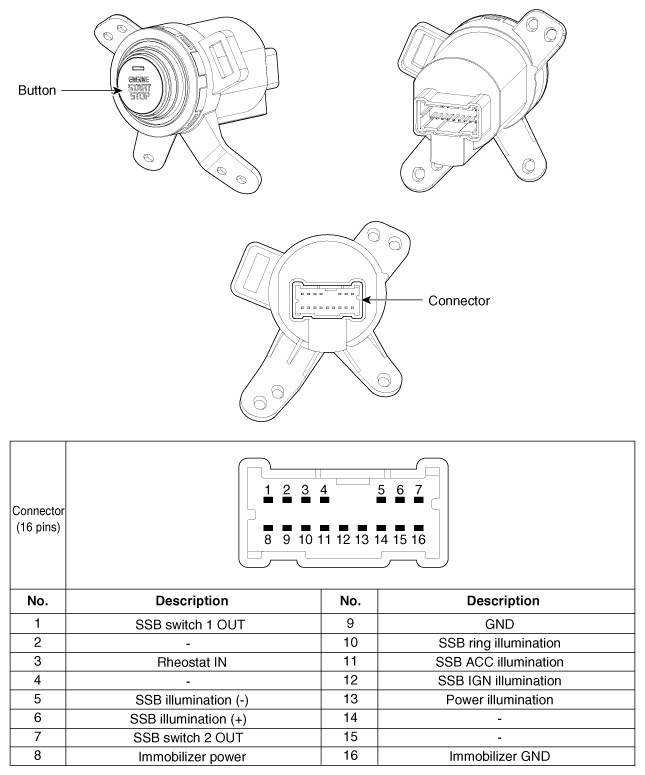

Fig 1: Start And Stop Button Components And Connector End View
G12143092Courtesy of KIA MOTORS AMERICA, INC.
