Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

    2. Remove the crash pad center panel.

  2. (Refer to Body - "CRASH PAD CENTER PANEL ")
  3. Remove the start/stop button assembly (A) after loosening the screws.

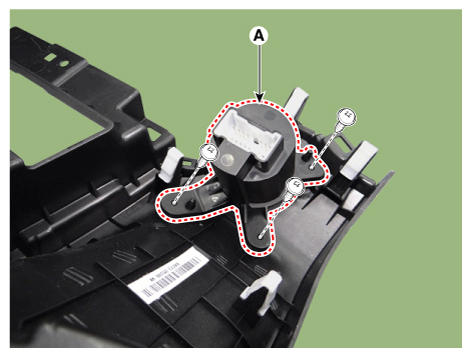

Fig 1: Locating Start/Stop Button Assembly With Screws
G12143093Courtesy of KIA MOTORS AMERICA, INC.
