Ignition System - 2.4L (Except HEV)
>>
Ignition Coil
>>
Schematic Diagrams
>>
Connector View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Connector View

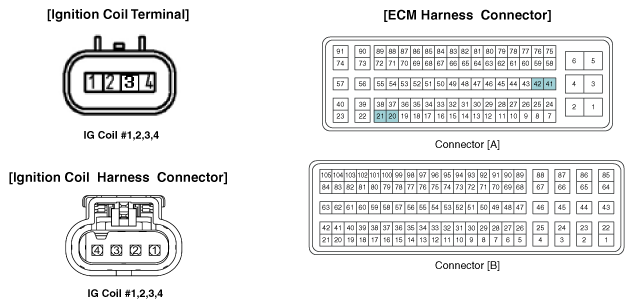

Fig 1: ECM Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
