Repair Procedures: Inspection

1. Switch "OFF" ignition.
2. Remove the battery and battery tray.

   (Refer to Engine Electrical System - "BATTERY ")

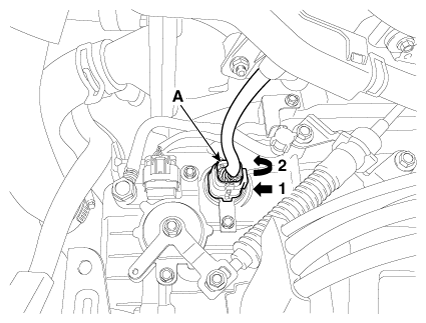

3. Disconnect the solenoid valve connector (A).
   Fig 1: Disconnecting Solenoid Valve Connector

   Courtesy of KIA MOTORS AMERICA, INC.
4. Measure the resistance between power terminal (14) and signal terminal (8).

Specification:  Approx. 0.88 MΩ

Fig 2: Solenoid Valve Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.
