Repair Procedures: Removal
- Remove the valve body assembly.
(Refer to Hydraulic System - "VALVE BODY ")

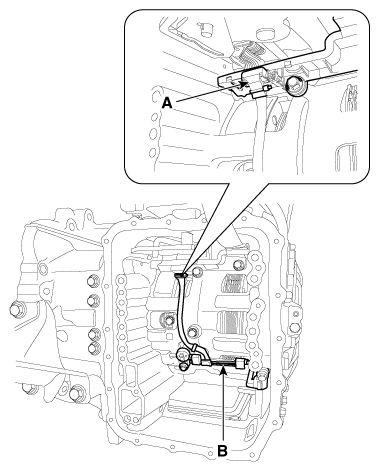

- Disconnect the input & output speed sensor connector (A).
- Remove the input & output speed sensor (B) after loosening the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
