Cluster Module Variant Coding

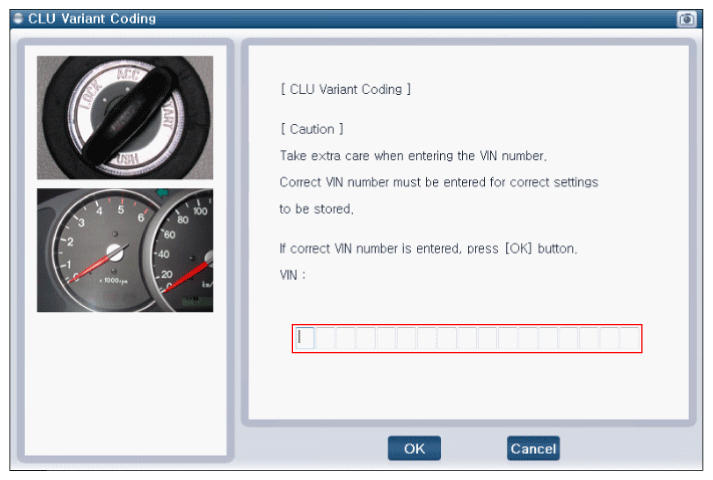

Verify vehicle options and have VIN code in hand.

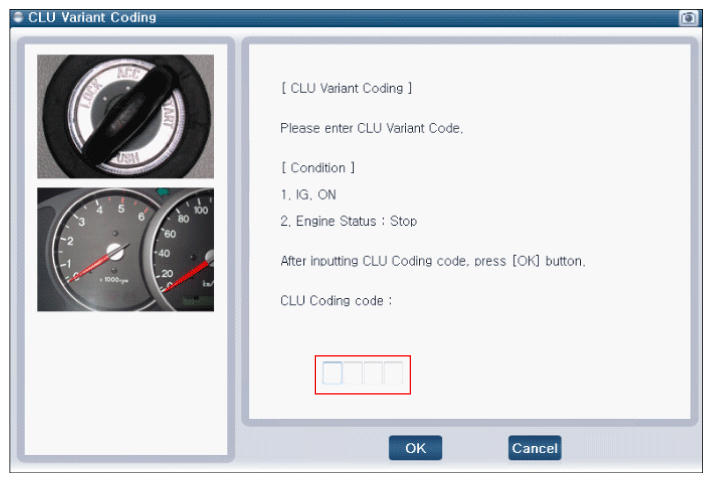

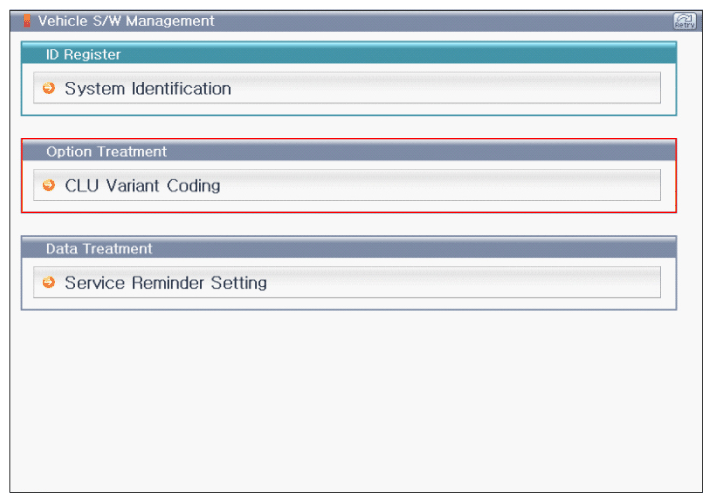

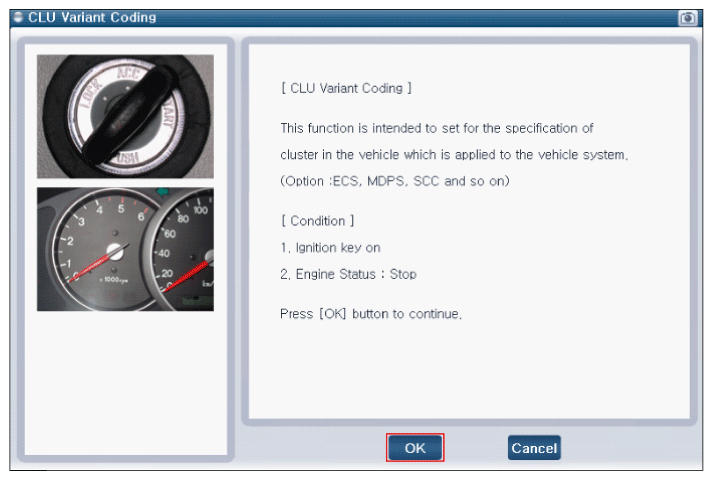

Perform "CLU Variant Coding" in the "Vehicle S/W Management" with KDS/GDS.
Check for DTCs in the system.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Is the DTCs stored in the system as a present?
YES
- Replace cluster module (CLU REMOVAL ) and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management" with KDS/GDS again, and then, go to "Verification Of VEHICLE REPAIR " procedure.
NO
- Go to "WIRING INSPECTION " procedure.
