Variant Coding Procedure

  1. Ignition "OFF", connect KDS/GDS.
  2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
  3. Select Variant coding mode.
  4. Follow steps on the screen as below.

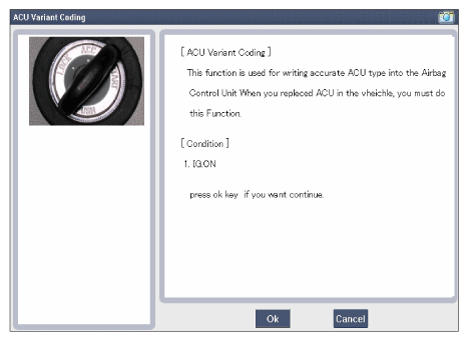

  1. Initial ACU Variant Coding screen
    G12350057Courtesy of KIA MOTORS AMERICA, INC.

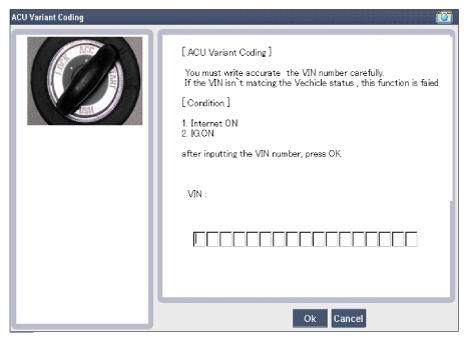

  2. VIN Code entering screen
    G12350058Courtesy of KIA MOTORS AMERICA, INC.

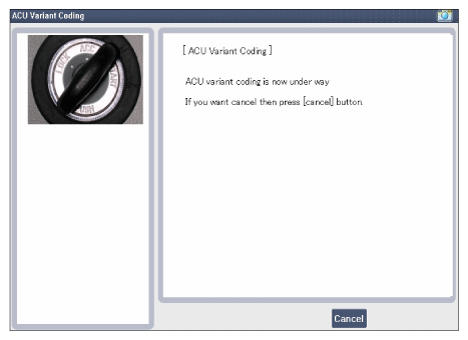

  3. Variant coding's proceeding screen-1
    G12350059Courtesy of KIA MOTORS AMERICA, INC.

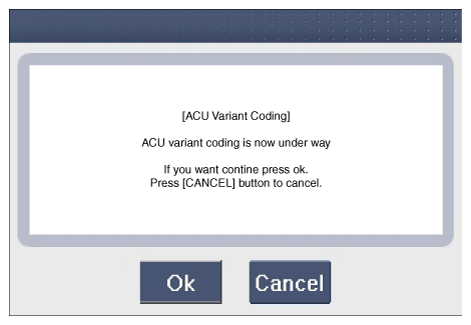

  4. Variant coding's proceeding screen-2
    G12350060Courtesy of KIA MOTORS AMERICA, INC.

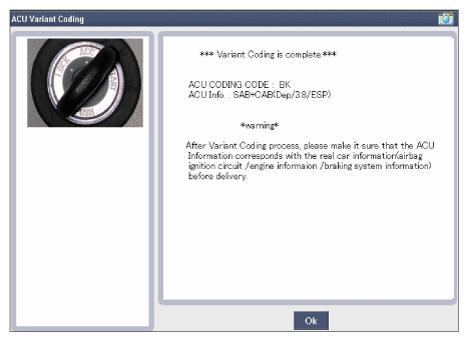

  5. Variant coding is completed
G12350061Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

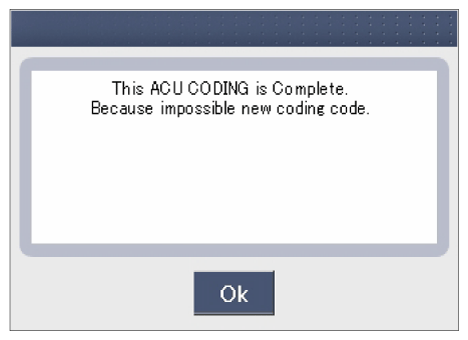

  1. This screen will pop-up when you try the variant coding again on the same SRSCM which variant coding has already been performed.
    G12350062Courtesy of KIA MOTORS AMERICA, INC.

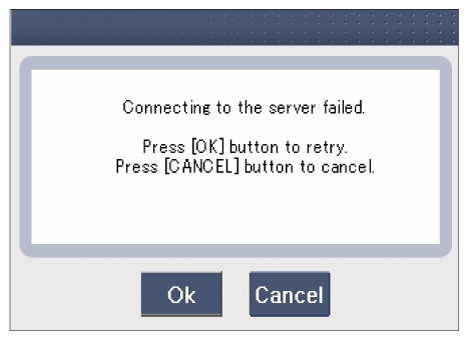

  2. Screen of communication failure
G12350063Courtesy of KIA MOTORS AMERICA, INC.

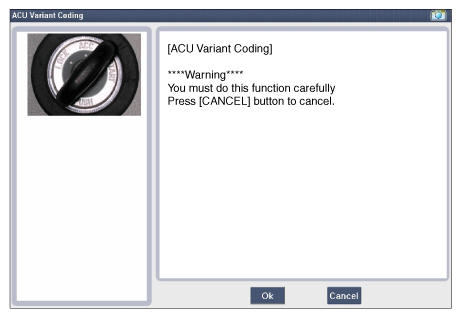

  1. Initial ACU Variant Coding screen
    G12350064Courtesy of KIA MOTORS AMERICA, INC.

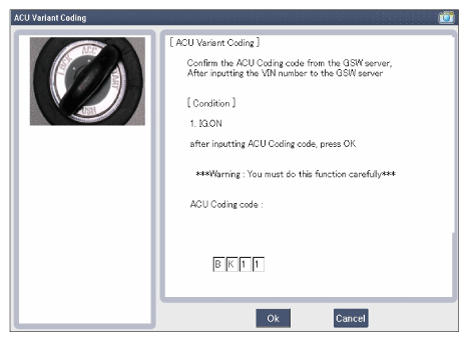

  2. ACU Coding Code entering screen
    G12350065Courtesy of KIA MOTORS AMERICA, INC.

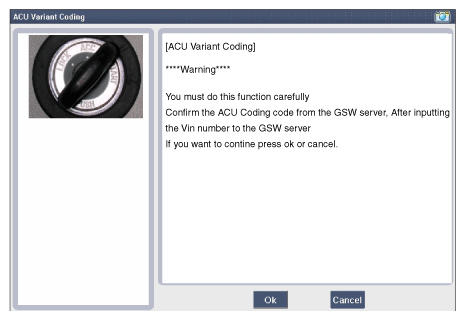

  3. Screen of rechecking ACU Coding code's entering
    G12350066Courtesy of KIA MOTORS AMERICA, INC.

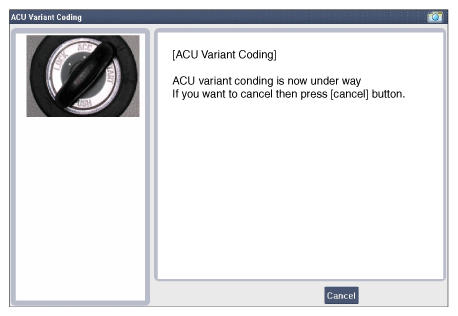

  4. Variant coding's proceeding screen-1
    G12350067Courtesy of KIA MOTORS AMERICA, INC.

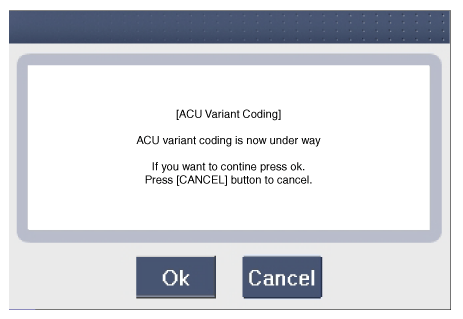

  5. Variant coding's proceeding screen-2
    G12350068Courtesy of KIA MOTORS AMERICA, INC.
  6. Variant coding is completed
G12350069Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

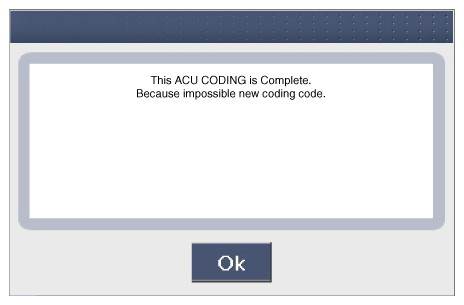

  1. This screen will pop-up when you try the variant coding again on the same SRSCM which variant coding has already been performed.
G12350070Courtesy of KIA MOTORS AMERICA, INC.
