Smart Key Code Saving

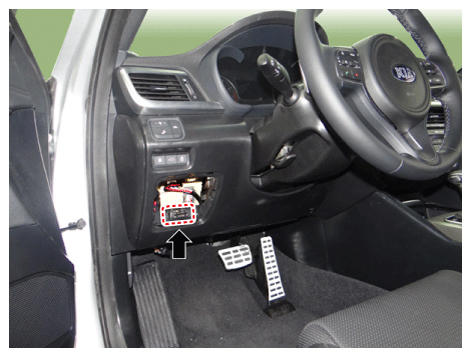

  1. Connect the DLC cable of KDS/GDS to the data link connector (16 pins) in driver side crash pad lower panel, and turn on the KDS/GDS.
    G12351875Courtesy of KIA MOTORS AMERICA, INC.

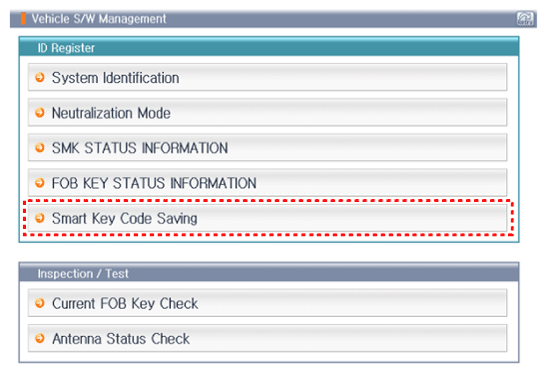

  2. Select the vehicle model and then perform "SMART KEY CODE SAVING ".
    G12351876Courtesy of KIA MOTORS AMERICA, INC.

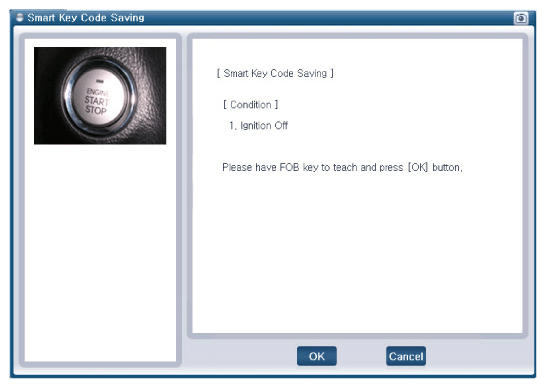

  3. After selecting "Smart key teaching" menu, press "Enter". Then, the following screen will appear.
    G12351877Courtesy of KIA MOTORS AMERICA, INC.
  4. After producing the smart key to be taught, press "Enter".

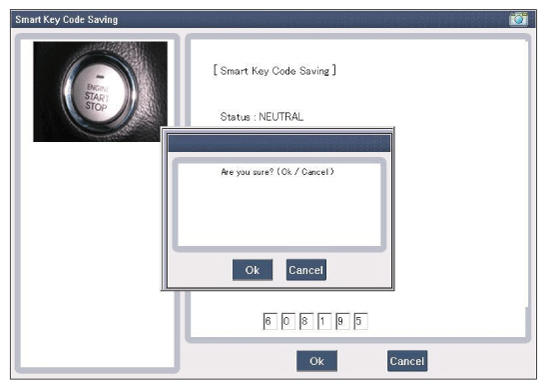

  5. Input the "Pin code" for first key teaching.
    G12351878Courtesy of KIA MOTORS AMERICA, INC.
    G12351879Courtesy of KIA MOTORS AMERICA, INC.

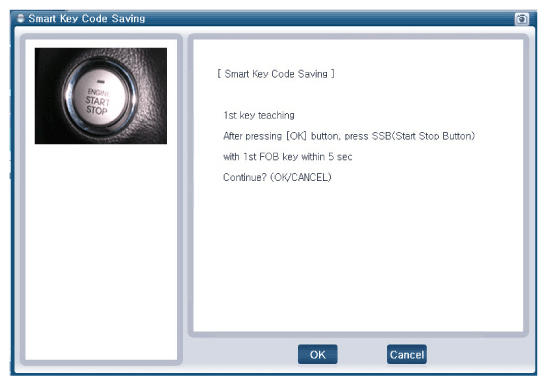

  6. Press the SSB with smart key within 5 seconds after pressing "OK".
    G12351880Courtesy of KIA MOTORS AMERICA, INC.
  7. Confirm the message "First key teaching completed".
    G12351881Courtesy of KIA MOTORS AMERICA, INC.

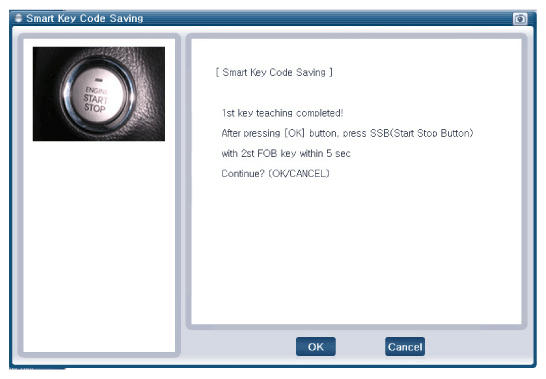

  8. Press the SSB with smart key within 5 seconds after pressing "OK".
    G12351882Courtesy of KIA MOTORS AMERICA, INC.

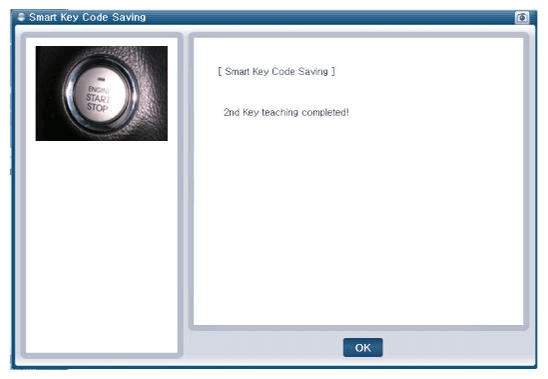

  9. Confirm the message "Second key teaching completed".
    G12351883Courtesy of KIA MOTORS AMERICA, INC.

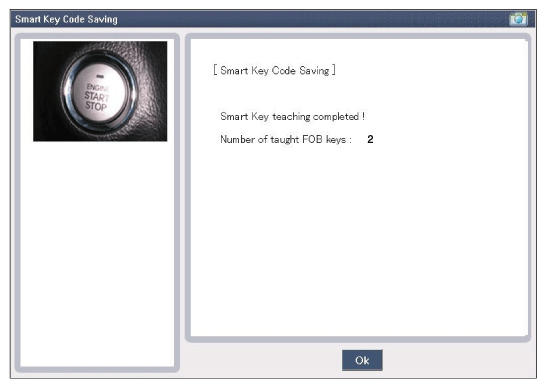

  10. Then the screen will be shown as below when key teaching process is completed.
G12351884Courtesy of KIA MOTORS AMERICA, INC.
