Circuit Diagram

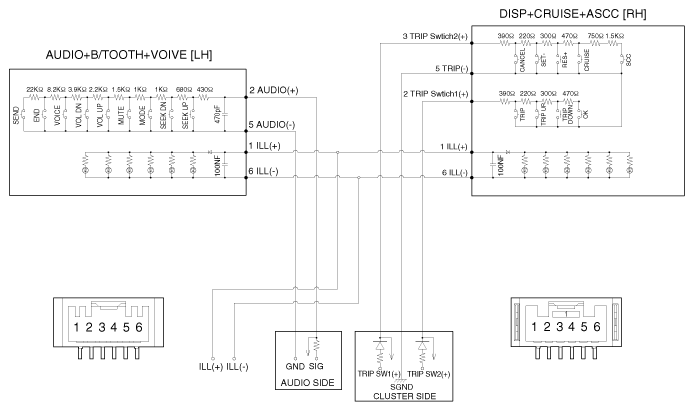

G12347003Courtesy of KIA MOTORS AMERICA, INC.

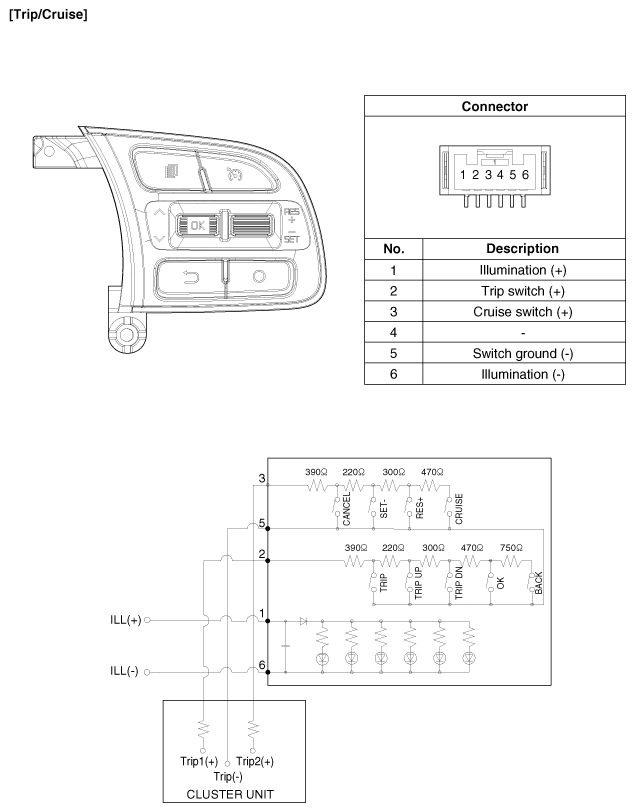

G12347004Courtesy of KIA MOTORS AMERICA, INC.

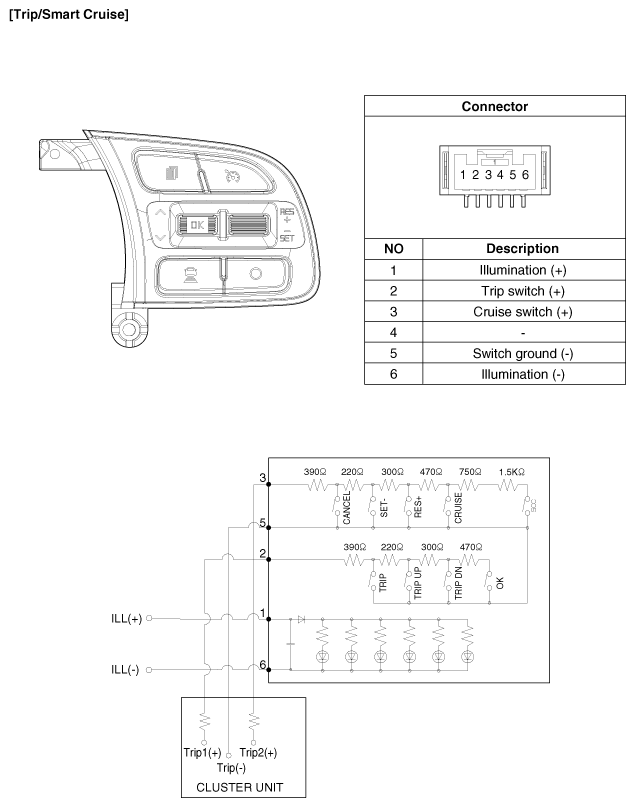

G12347005Courtesy of KIA MOTORS AMERICA, INC.

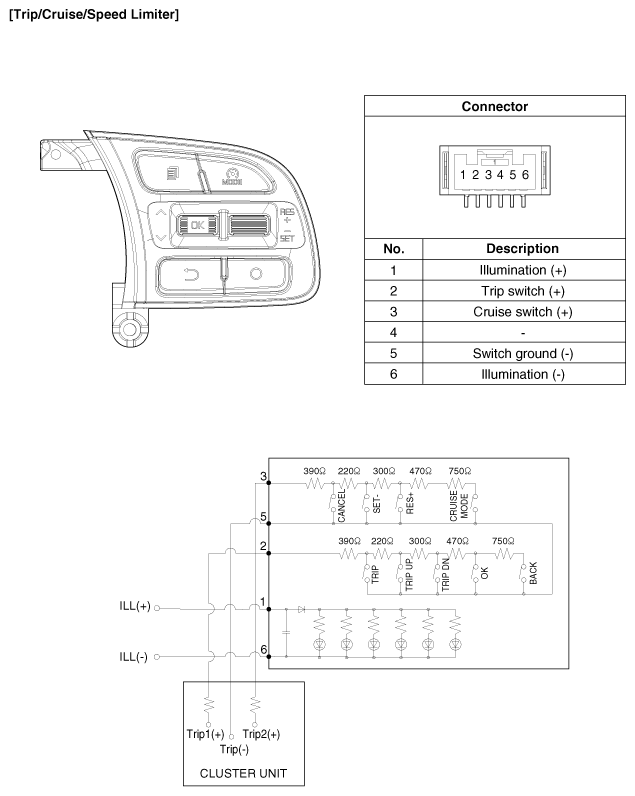

G12347006Courtesy of KIA MOTORS AMERICA, INC.

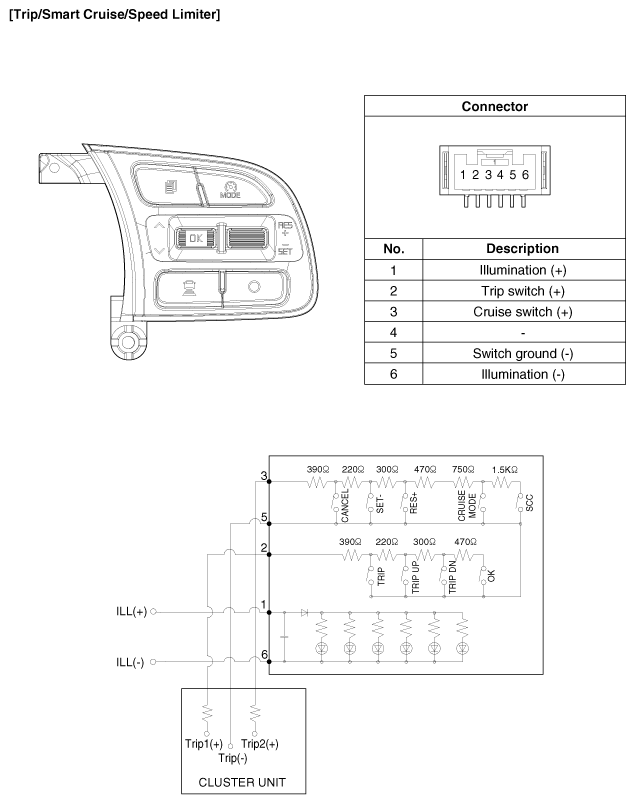

G12347007Courtesy of KIA MOTORS AMERICA, INC.
