Repair Procedures: Removal

  1. Remove the front bumper.

    (Refer to Body - "FRONT BUMPER COVER ")

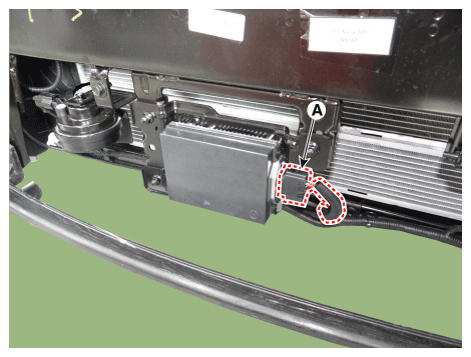

  2. Disconnect the ASCC radar & unit connector (A).
    G12346986Courtesy of KIA MOTORS AMERICA, INC.

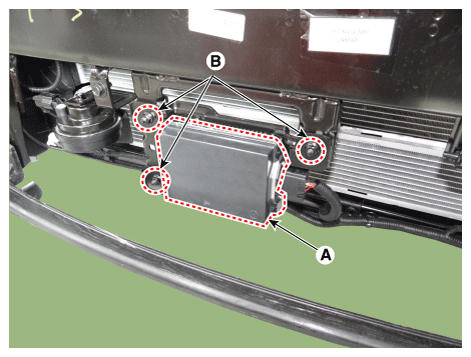

  3. Remove the ASCC radar & ECU (A) after loosening the mounting nuts (B).
G12346987Courtesy of KIA MOTORS AMERICA, INC.
