[Bank 1/Sensor 1]
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

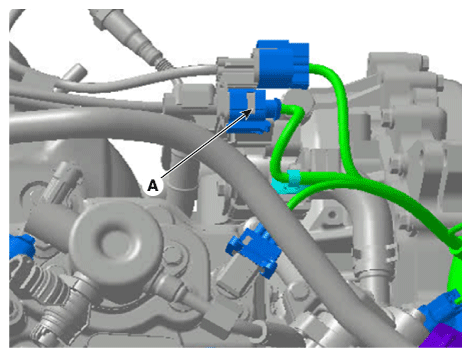

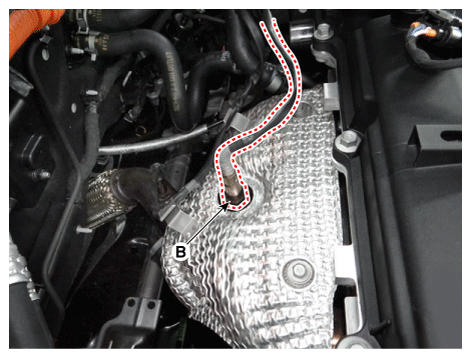

- Disconnect the connector (A), and then remove the sensor (B).
Heated oxygen sensor:
39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)
