Fuel Pressure Sensor (FPS): Specifications: Specification

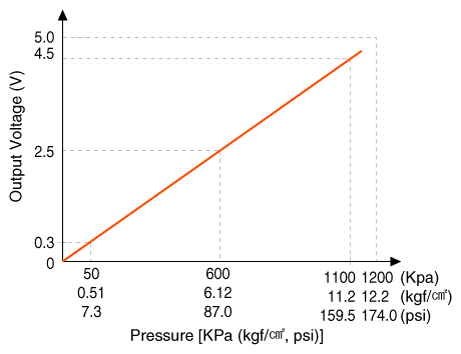

FUEL PRESSURE SENSOR SPECIFICATIONS

Pressure [KPa (kgf/cm2 , psi)] Output Voltage (V)
50 (0.51, 7.3) 0.3
600 (6.12, 87.0) 2.5
1100 (11.2, 159.5) 4.5
G12347426Courtesy of KIA MOTORS AMERICA, INC.
