Monitor DTC Status
- Connect KDS/GDS to Data Link Connector (DLC).
- Ignition "ON"

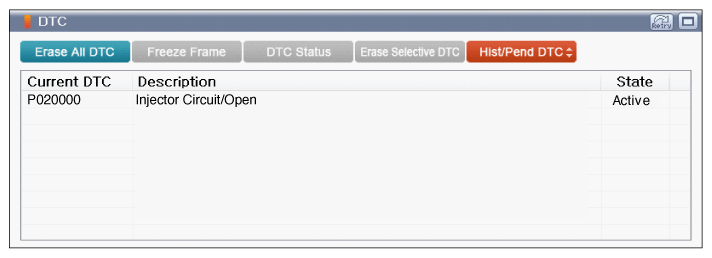

- Monitor "Diagnostic Trouble Codes (DTC)
" with KDS/GDS.
- Is DTC status displayed as Present?
YES
- Go to "Wiring Inspection " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
