Evap. Leakage Test

  1. Ignition "OFF"
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON"
  4. Operate vehicle according to enable condition of Evap. Leakage Test.
  5. Perform "Evap. Leakage Test" in "Vehicle S/W Management" with KDS/GDS.
    NOTE: Evap. Leakage Test Condition:1.
    1. Vehicle Stopped
    2. Fuel Level Below 80%
    3. No Trouble Code
    4. Engine Idle State
    5. Engine Coolant Temperature Above 176°F (80°C)

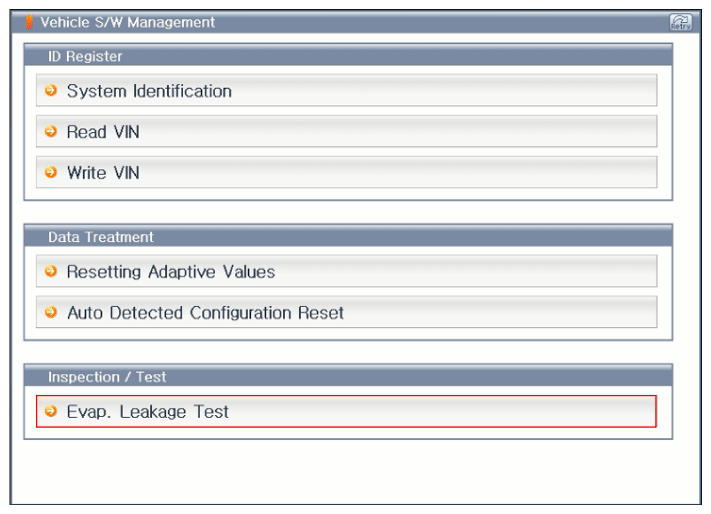

    G12359392Courtesy of KIA MOTORS AMERICA, INC.

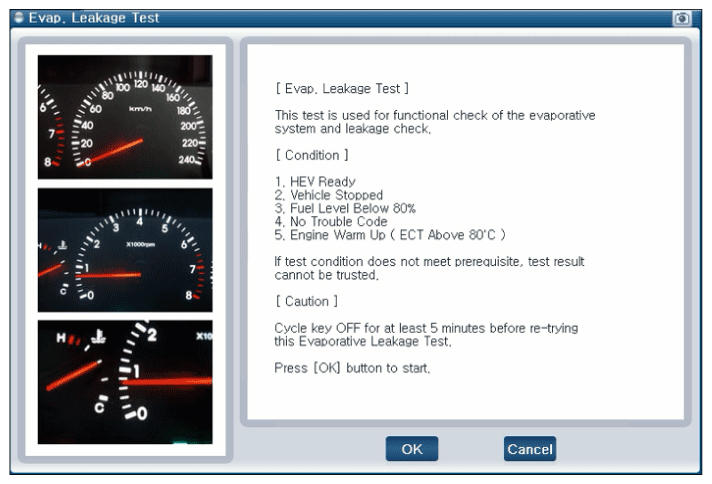

    G12359393Courtesy of KIA MOTORS AMERICA, INC.

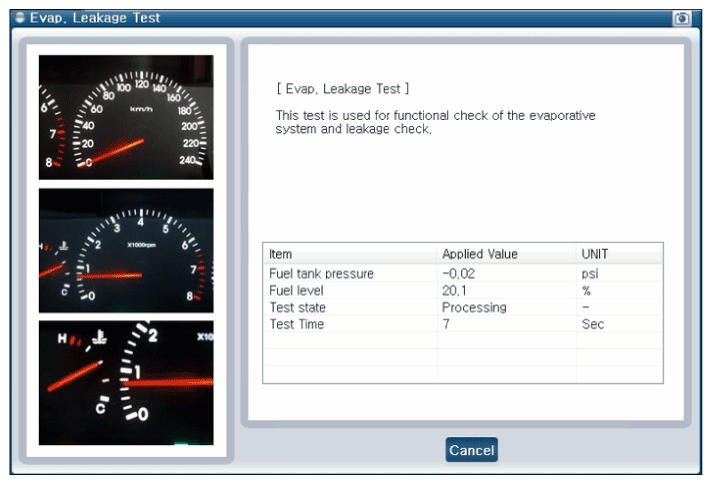

    G12359394Courtesy of KIA MOTORS AMERICA, INC.

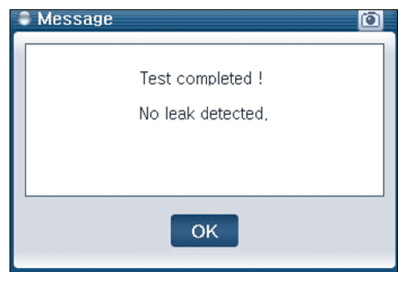

    G12359395Courtesy of KIA MOTORS AMERICA, INC.
  6. Has the test been successfully completed?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.

    NO

    • Carefully re-do this troubleshooting guide steps.
    • Repair or replace leaking system component (s) and then, go to "Verification of Vehicle Repair " procedure.
