Clock Spring

WARNING: This page is about a different variant/trim than selected.
  1. If, as a result of the following checks, even one abnormality is discovered, replace the clock spring with a new one.
  2. Check connectors and protective tube for damage, and terminals for deformities.

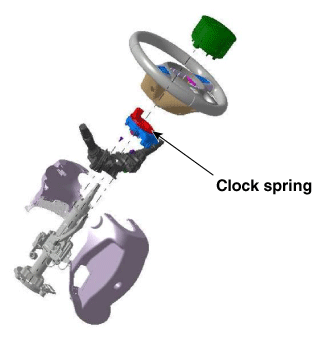

Fig 1: Locating Clock Spring
G12142002Courtesy of KIA MOTORS AMERICA, INC.

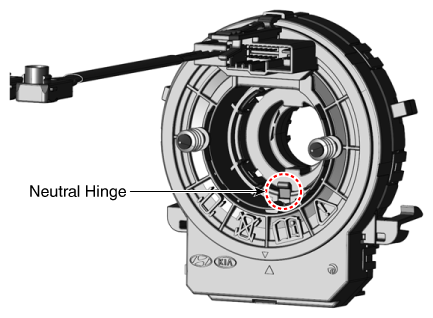

Fig 2: Locating Neutral Hinge
G12142003Courtesy of KIA MOTORS AMERICA, INC.
