Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal, and wait for at least three minutes before beginning to work.
    NOTE: After disconnecting the cables, wait at least 30 seconds.
  2. Remove the seat back cover.

    (Refer to Body - "FRONT SEAT BACK COVER ")

    NOTE: Improper mounting of the front seat back cover, so interfering with the normal deployment of side airbags and front seat backrest ensure that the cover is well seated.
  3. Loosen the side airbag module nuts and then remove the airbag module (A).

    Tightening torque:

    6.0 - 8.0 N.m (0.6 - 0.8 kgf.m, 4.4 - 5.9 lb-ft)

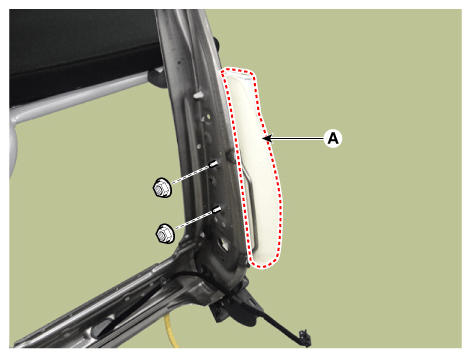

    Fig 1: Locating Airbag Module With Nuts
    G12142016Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
