Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the glove box housing.

    (Refer to Body - "CRASH PAD (EXCEPT HEV) ")

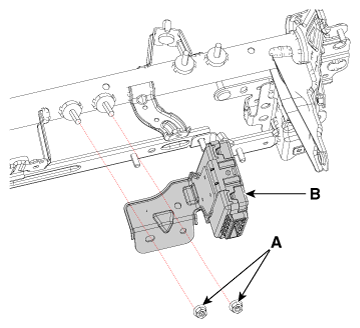

  3. Remove the ASCC ECU (B) after disconnecting the connector and nuts (A).
Fig 1: Locating ASCC ECU And Nuts
G12139962Courtesy of KIA MOTORS AMERICA, INC.
