Resolver Sensor (HSG)

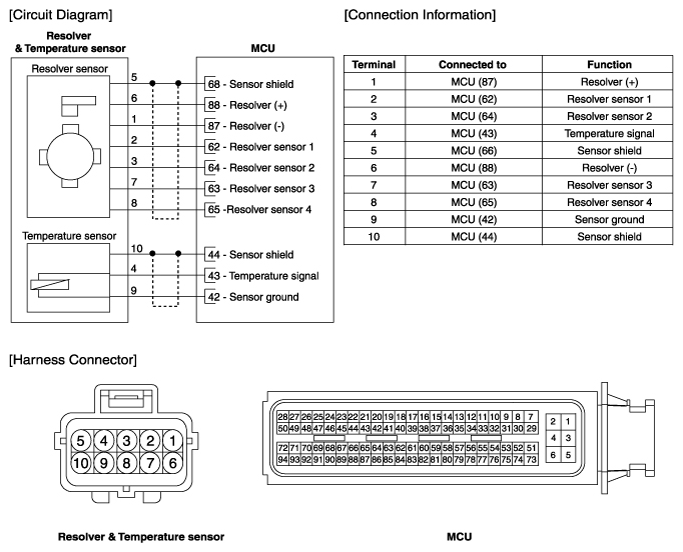

Fig 1: Resolver Sensor (HSG) Circuit Diagram With Connector End View & Terminal Function
G12353678Courtesy of KIA MOTORS AMERICA, INC.
