Description And Operation: Description

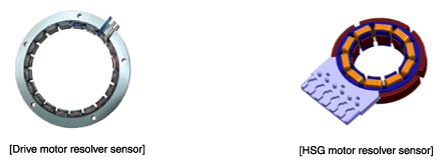

The accurate position of the rotor must be known at all times to ensure maximum output control of the motor. Like the CMP sensor on the engine, it detects the position of the rotor in the motor.

Courtesy of KIA MOTORS AMERICA, INC.
