Repair Procedures: Inspection

  1. Inspect high voltage connector connection state (dual connection).
    NOTE: [Electric Oil Pump (EOP) power cable connector dual connection state]

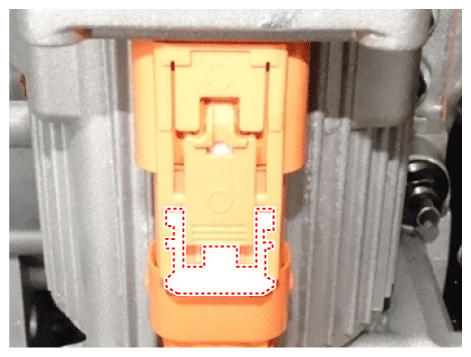

    G12353577Courtesy of KIA MOTORS AMERICA, INC.

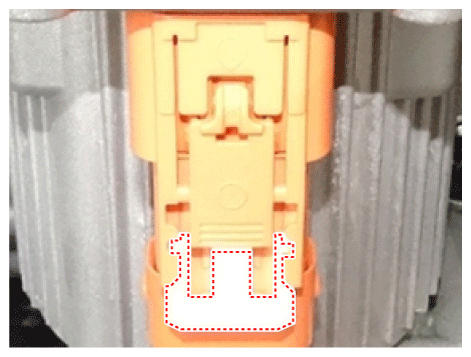

    G12353578Courtesy of KIA MOTORS AMERICA, INC.

    [Oil Pump Unit (OPU)

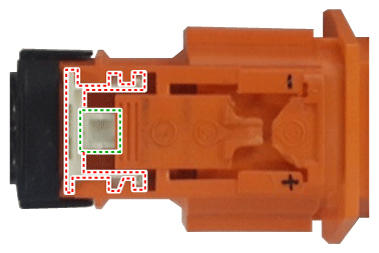

    G12353579Courtesy of KIA MOTORS AMERICA, INC.

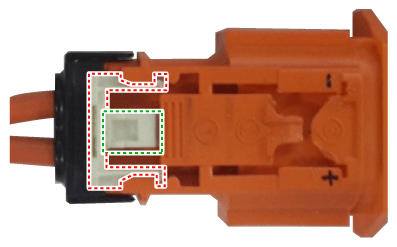

    G12353580Courtesy of KIA MOTORS AMERICA, INC.
