KNOCK SENSOR DETECTION SYSTEM - ECU LOGIC IMPROVEMENT (PI1802)
TECHNICAL SERVICE BULLETIN
Reference Number(s): PI1802 Rev 12, Date of Issue:
August 04, 2020
| KIA: | 2014 Optima (TF); 2015-2018 Optima (TF/QF/JF/JFa); 2014-2018 Sportage (SL/QL); 2015-2018 Sorento (XMa/UMa) |
| GROUP: | Product Improvement |
SERVICE INFORMATION
NOTE:
This bulletin has been revised to include additional information. New/revised sections of this bulletin are indicated below.
This bulletin provides information related to a software update to the Engine Control Unit (ECU) to install the Knock Sensor Detection System (KSDS) in order to protect the engine from excessive connecting rod bearing damage. This update is for:
| Year | Model | Engine | Production Date |
|---|---|---|---|
| 2014 | Optima (TF) | 2.4L GDI | 08/29/13 - 04/25/14 |
| 2015-2018 | Optima (TF/QF/JF/JFa) | 2.4L & 2.0T GDI | 04/16/14 - 07/11/18 |
| 2014-2018 | Sportage (SL/QL) | 2.4L & 2.0T GDI | 09/30/13 - 04/05/18 |
| 2015-2018 | Sorento (XMa/UMa) | 2.4L & 2.0T GDI | 01/03/14 - 03/07/18 |
The KSDS detects vibrations indicating the onset of excessive connecting rod bearing wear. It is designed to alert the driver at an early stage of bearing wear before the occurrence of severe engine damage, including engine failure. If vibrations caused by bearing wear start to occur, the Malfunction Indicator Lamp (MIL) will blink continuously, and the vehicle will be placed in Limp Home Mode. This will reduce further damage to the engine and ensure that the vehicle occupants are not exposed to the risk of a more severe engine failure. At that time, Diagnostic Trouble Code ("DTC") P1326, specific to the KSDS, will be recorded in the ECU. The vehicle can continue to be operated for a limited time in Limp Home Mode, but it will accelerate slowly and have a reduced maximum speed. Also, engine RPMs will be limited to approximately 1800-2000 RPM.
Kia is requesting the completion of this Product Improvement Campaign on all affected vehicles. Before conducting the procedure, verify the vehicle is included in the list of affected VINs. Also, please have your KDS connected to the internet regularly to get the latest software updates available.
NOTE:
To assure complete customer satisfaction, always remember to refer to WebDCS Warranty Coverage (validation) Inquiry Screen (Service → Warranty Coverage → Warranty Coverage Inquiry) for a list of any additional campaigns that may need to be performed on the vehicle before returning it to the customer.
ECU UPGRADE PROCEDURE

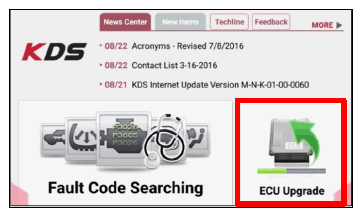

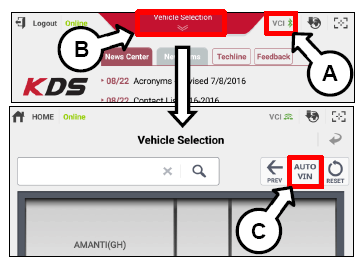

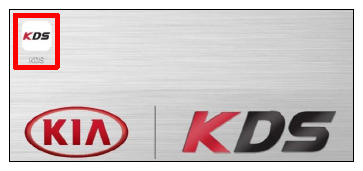

To correct this condition, the ECU should be reprogrammed using the KDS download, as described in this bulletin.
| Upgrade Event Name (THETA 2.0L T-GDI) |
|---|
| 446.TF Theta 2.0 Knock Sensor Detection System (KSDS) ECU Upgrade (14-15MY) |
| 447.QF Theta 2.0 Knock Sensor Detection System (KSDS) ECU Upgrade (15MY) |
| 448. SL THETA 2.0 Knock Sensor Detection System (KSDS) ECU Upgrade (14-16MY ULEV) |
| 449. UMA THETA 2.0 Knock Sensor Detection System(KSDS) ECU Upgrade (15-18MY) |
| 450. JF/JFA THETA 2.0 Knock Sensor Detection System(KSDS) ECU Upgrade (16-18MY) |
| 451. QL THETA 2.0 Knock Sensor Detection System(KSDS) ECU Upgrade (17-18MY) |
| Upgrade Event Name (THETA 2.4L GDI) |
|---|
| 472. XMA THETA 2.4 KSDS Misdiagnosis Prevention Logic Improvement (15MY) |
| 473. TF THETA 2.4 KSDS Misdiagnosis Prevention Logic Improvement (14-15MY) |
| 474. QF THETA 2.4 KSDS Misdiagnosis Prevention Logic Improvement (15MY) |
| 475. SL THETA 2.4 KSDS Misdiagnosis Prevention Logic Improvement (14-16MY) |
| 476. UMA THETA 2.4 KSDS Misdiagnosis Prevention Logic Improvement (15-18MY) |
| 477. JF/JFA THETA 2.4 KSDS Misdiagnosis Prevention Logic Improvement (16-18MY) |
| 478. QL THETA 2.4 KSDS Misdiagnosis Prevention Logic Improvement (17-18MY) |
NOTE:
- A fully charged battery is necessary before ECU upgrade can take place. It is recommended that a battery charger is used in ECU mode during reflashing or the use of a fully charged jump starter box connected to the battery.
- DO NOT connect any other battery charger to the vehicle during ECU upgrade.
- Ensure the KDS or GDS is sufficiently charged prior to reflash.
- All ECU upgrades must be done with the ignition key in the 'ON' position.

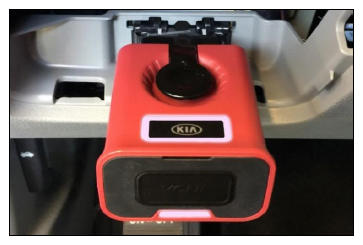

- Be careful not to disconnect the VCI-II connected to the vehicle during the ECU upgrade procedure.
- DO NOT start the engine during ECU upgrade.
- Do NOT turn the ignition key 'OFF' or interrupt the power supply during ECU upgrade.

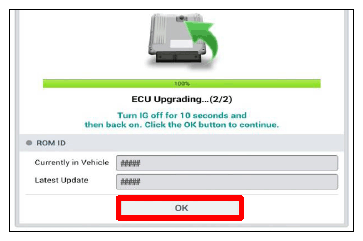

- When the ECU upgrade is completed, turn the ignition 'OFF' and wait 10 seconds before starting the engine.
- ONLY use approved ECU upgrade software designated for the correct model and model year.
CAUTION:
Before attempting an ECU upgrade on any Kia model, make sure to first determine whether the particular model is equipped with an immobilizer security system. Failure to follow proper procedures may cause the PCM to become inoperative after the upgrade and any claims associated with this repair may be subject to chargeback.
NOTE:
For Optima models included in this TSB:
VINs that start with 5XX are designated Optima (QF/JFa) and produced in the United States. VINs that start with KNA are designated Optima (TF/JF) are produced in South Korea.
VINs that start with 5XX are designated Optima (QF/JFa) and produced in the United States. VINs that start with KNA are designated Optima (TF/JF) are produced in South Korea.
NOTE:
It is recommended to ALWAYS check the Electronic Parts Catalog (EPC) to locate the ECU Part Number respective to Auto/Manual Mode ROM IDs. DO NOT reference the parts label affixed to the ECU.
ROM ID INFORMATION TABLE
Upgrade Event #446 2014-2015MY (TF), #447, #448 (SL), #449 (UMa), #450 (JF/JFa), #451 (QL), #472 (XMa), #473 (TF), #474 (QF), #475 (SL), #476 (UMa), #477 (JF/JFa), and #478 (QL).
| Model | ENG | IMMO | ECU P/No. | ROM ID | |
|---|---|---|---|---|---|
| Previous | New | ||||
| 15MY Sor. (XMa) | 2.4 (ULEV) | Yes | 39113-2GBK6 39113-2GBK7 39113-2GBL6 39113-2GBL7 |
FFC4RH2A FFC4RH2A FFC4RHAA FFC4RHAB FFC4RHAK FFC4RHAL FFC4RHAM |
FFC4RHAN |
| No | 39113-2GBK1 39113-2GBK2 39113-2GBL1 39113-2GBL2 |
FFC4MH2A FFC4MH2A FFC4MHAA FFC4MHAB FFC4MHAK FFC4MHAL FFC4MHAM |
FFC4MHAN | ||
| 14MY Opt. (TF) | 2.4 (ULEV) | Yes | 39108-2GBF0 39118-2GBF0 |
TEC4RH2K TEC4RH2L TEC4RH25 TEC4RH26 TEC4RH27 |
TEC4RH28 |
| No | 39108-2GBE0 39118-2GBE0 |
TEC4MH2K TEC4MH2L TEC4MH25 TEC4MH26 TEC4MH27 |
TEC4MH28 | ||
| 2.4 (SULEV) | Yes | 39108-2GBF5 | TES4RH2K TES4RH2L TES4RH25 TES4RH26 TES4RH27 |
TES4RH28 | |
| No | 39108-2GBE5 | TES4MH2K TES4MH2L TES4MH25 TES4MH26 TES4MH27 |
TES4MH28 | ||
| 15MY Opt. (TF) | 2.4 (ULEV) | Yes | 39108-2GBF1 | TFC4RH4K TFC4RH4L TFC4RH45 TFC4RH46 TFC4RH47 |
TFC4RH48 |
| No | 39108-2GBE1 39118-2GBE1 |
TFC4MH4K TFC4MH4L TFC4MH45 TFC4MH46 TFC4MH47 |
TFC4MH48 | ||
| 2.4 (SULEV) | No | 39108-2GBE6 | TFS4MH4K TFS4MH4L TFS4MH45 TFS4MH46 TFS4MH47 |
TFS4MH48 | |
| 14MY Opt. (TF) | 2.0T (ULEV) | Yes | 39108-2GBG5 39108-2GBG6 |
TEC0RH2K TEC0RH2L TEC0RH25 TEC0RH26 |
TEC0RH27 |
| No | 39108-2GBG0 39108-2GBG1 |
TEC0MH2K TEC0MH2L TEC0MH25 TEC0MH26 |
TEC0MH27 | ||
| 15MY Opt. (TF) | 2.0T (ULEV) | Yes | 39108-2GBG7 | TFC0RH4K TFC0RH4L TFC0RH45 TFC0RH46 |
TFC0RH47 |
| 14MY Spo. (SL) | 2.4 (ULEV) | Yes | 39107-2GCD0 39107-2GCE0 39117-2GCD0 39117-2GCE0 |
SEC4RH2A SEC4RH2B SEC4RH2C SEC4RH2D SEC4RH2K SEC4RH2L |
SEC4RH2M |
| No | 39107-2GCD5 39107-2GCE5 39117-2GCD5 39117-2GCE5 |
SEC4MH2A SEC4MH2B SEC4MH2C SEC4MH2D SEC4MH2K SEC4MH2L |
SEC4MH2M | ||
| 2.4 (SULEV) | Yes | 39107-2GCG0 | SES4RH2A SES4RH2B SES4RH2C SES4RH2D SES4RH2K SES4RH2L SES4RH2M |
SES4RH2N | |
| No | 39107-2GCG5 | SES4MH2A SES4MH2B SES4MH2C SES4MH2D SES4MH2K SES4MH2L SES4MH2M |
SES4MH2N | ||
| 15MY Spo. (SL) | 2.4 (ULEV) | Yes | 39107-2GCD1 39107-2GCD2 39107-2GCE1 39107-2GCE2 39117-2GCD1 39117-2GCE1 |
SFC4RH4A SFC4RH4B SFC4RH4K SFC4RH4L |
SFC4RH4M |
| No | 39107-2GCD6 39107-2GCD7 39107-2GCE6 39107-2GCE7 39117-2GCD6 39117-2GCE6 |
SFC4MH4A SFC4MH4B SFC4MH4K SFC4MH4L |
SFC4MH4M | ||
| 2.4 (SULEV) | Yes | 39107-2GCG1 39107-2GCG2 |
SFS4RH4A SFS4RH4B SFS4RH4K SFS4RH4L SFS4RH4M |
SFS4RH4N | |
| No | 39107-2GCG6 39107-2GCG7 |
SFS4MH4A SFS4MH4B SFS4MH4K SFS4MH4L SFS4MH4M |
SFS4MH4N | ||
| 14MY Spo. (SL) | 2.0T (ULEV) | Yes | 39107-2GCC0 | SEC0RH2A SEC0RH2K |
SEC0RH2L |
| No | 39107-2GCC5 | SEC0MH2A SEC0MH2K |
SEC0MH2L | ||
| 15MY Spo. (SL) | 2.0T (ULEV) | Yes | 39107-2GCC1 39107-2GCC2 |
SFC0RH4A SFC0RH4K |
SFC0RH4L |
| No | 39107-2GCC6 39107-2GCC7 |
SFC0MH4A SFC0MH4K |
SFC0MH4L | ||
| Yes | 39107-2GCC3 | SGC0RH4A SGC0RH4K |
SGC0RH4L | ||
| No | 39107-2GCC8 | SGC0MH4A SGC0MH4K |
SGC0MH4L | ||
| 15MY Opt. (QF) | 2.4 (ULEV) | Yes | 39108-2GBJ1 39108-2GBJ2 39118-2GBJ1 |
TFC4RH4A TFC4RH4B TFC4RH41 TFC4RH42 TFC4RH43 |
TFC4RH44 |
| No | 39108-2GBH1 39108-2GBH2 39118-2GBH1 |
TFC4MH4A TFC4MH4B TFC4MH41 TFC4MH42 TFC4MH43 |
TFC4MH44 | ||
| 15MY Opt. (QF) | 2.4 (SULEV) | Yes | 39108-2GBJ6 39108-2GBJ7 |
TFS4RH4A TFS4RH4B TFS4RH41 TFS4RH42 TFS4RH43 |
TFS4RH44 |
| No | 39108-2GBH6 39108-2GBH7 |
TFS4MH4A TFS4MH4B TFS4MH41 TFS4MH42 TFS4MH43 |
TFS4MH44 | ||
| 2.0T (ULEV) | Yes | 39108-2GBK7 39108-2GBK8 |
TFC0RH4A TFC0RH4B TFC0RH41 TFC0RH42 |
TFC0RH43 | |
| No | 39108-2GBK2 39108-2GBK3 |
TFC0MH4A TFC0MH4B TFC0MH41 TFC0MH42 |
TFC0MH43 | ||
| 16MY Sor. (UMa) 2WD | 2.0T (ULEV) | Yes | 39100-2GTC6 | UMAGNC0ERA3A UMAGNC0ERA5A UMAGNC0ERA61 UMAGNC0ERA6K |
UMAGNC0ERA6M |
| 39100-2GTC5 | UMAFNC0ER92A UMAFNC0ER921 UMAFNC0ER91A UMAFNC0ER92K |
UMAFNC0ER92M | |||
| No | 39100-2GTC1 | UMAGNC0EMA3A UMAGNC0EMA5A UMAGNC0EMA61 UMAGNC0EMA6K |
UMAGNC0EMA6M | ||
| 39100-2GTC0 | UMAFNC0EM92A UMAFNC0EM921 UMAFNC0EM91A UMAFNC0EM92K |
UMAFNC0EM92M | |||
| 16MY Sor. (UMa) 4WD | 2.0T (ULEV) | Yes | 39100-2GTD6 | UMAGNC0ERA3A UMAGNC0ERA5A UMAGNC0ERA61 UMAGNC0ERA6L |
UMAGNC0ERA6N |
| 39100-2GTD5 | UMAFNC0ER92A UMAFNC0ER921 UMAFNC0ER91A UMAFNC0ER92L |
UMAFNC0ER92N | |||
| No | 39100-2GTD1 | UMAGNC0EMA3A UMAGNC0EMA5A UMAGNC0EMA61 UMAGNC0EMA6L |
UMAGNC0EMA6N | ||
| 39100-2GTD0 | UMAFNC0EM92A UMAFNC0EM921 UMAFNC0EM91A UMAFNC0EM92L |
UMAFNC0EM92N | |||
| 16-17MY Sor. (UMa) 2WD | 2.4 (ULEV) | Yes | 39100-2GGF5 | UMAFNC4ER91A UMAFNC4ER92A UMAGNC4ERA31 UMAFNC4ERA51 UMAFNC4ERA52 UMAFNC4ERA6K UMAFNC4ERA6Q |
UMAFNC4ERA6U |
| 39100-2GGF6 | UMAFNC4ERA3A UMAFNC4ERA5A UMAFNC4ERA5B UMAFNC4ERA5C UMAFNC4ERA6M UMAFNC4ERA6S |
UMAFNC4ERA6W | |||
| 39100-2GGF6 39100-2GGF7 |
UMAHNC4ERA5A UMAHNC4ERA5B UMAHNC4ERA6A UMAHNC4ERA6B UMAHNC4ERA6K UMAHNC4ERA6M UMAHNC4ERA6Q UMAHNC4ERA6O |
UMAHNC4ERA6S | |||
| No | 39100-2GGF0 | UMAFNC4EM91A UMAFNC4EM92A UMAGNC4EMA31 UMAFNC4EMA51 UMAFNC4EMA52 UMAFNC4EMA6K UMAFNC4EMA6Q |
UMAFNC4EMA6U | ||
| 39100-2GGF1 | UMAFNC4EMA3A UMAFNC4EMA5A UMAFNC4EMA5B UMAFNC4EMA5C UMAFNC4EMA6M UMAFNC4EMA6S |
UMAFNC4EMA6W | |||
| 39100-2GGF1 39100-2GGF2 |
UMAHNC4EMA5A UMAHNC4EMA5B UMAHNC4EMA6A UMAHNC4EMA6B UMAHNC4EMA6K UMAHNC4EMA6M UMAHNC4EMA6Q UMAHNC4EMA6O |
UMAHNC4EMA6S | |||
| 17MY Sor. (UMa) 2WD | 2.0T (ULEV) | Yes | 39100-2GTC7 | UMAHNC0ERA5A UMAHNC0ERA6A UMAHNC0ERA6B UMAHNC0ERA6K UMAHNC0ERA6M UMAHNC0ERA6O |
UMAHNC0ERA6Q |
| No | 39100-2GTC2 | UMAHNC0EMA5A UMAHNC0EMA6A UMAHNC0EMA6B UMAHNC0EMA6K UMAHNC0EMA6M UMAHNC0EMA6O |
UMAHNC0EMA6Q | ||
| 16-17MY Sor. (UMa) 4WD | 2.4 (ULEV) | Yes | 39100-2GGH5 | UMAFNC4ER91A UMAFNC4ER92A UMAGNC4ERA31 UMAFNC4ERA51 UMAFNC4ERA52 UMAFNC4ERA6L UMAFNC4ERA6O UMAFNC4ERA6R |
UMAFNC4ERA6V |
| 39100-2GGH6 | UMAFNC4ERA3A UMAFNC4ERA5A UMAFNC4ERA5B UMAFNC4ERA5C UMAFNC4ERA6N UMAFNC4ERA6P UMAFNC4ERA6T |
UMAFNC4ERA6X | |||
| 39100-2GGH6 39100-2GGH7 |
UMAHNC4ERA5A UMAHNC4ERA5B UMAHNC4ERA6A UMAHNC4ERA6B UMAHNC4ERA6L UMAHNC4ERA6N UMAHNC4ERA6R UMAHNC4ERA6P |
UMAHNC4ERA6T | |||
| No | 39100-2GGH0 | UMAFNC4EM91A UMAFNC4EM92A UMAGNC4EMA31 UMAFNC4EMA51 UMAFNC4EMA52 UMAFNC4EMA6L UMAFNC4EMA6O UMAFNC4EMA6R |
UMAFNC4EMA6V | ||
| 39100-2GGH1 | UMAFNC4EMA3A UMAFNC4EMA5A UMAFNC4EMA5B UMAFNC4EMA5C UMAFNC4EMA6N UMAFNC4EMA6P UMAFNC4EMA6T |
UMAFNC4EMA6X | |||
| 39100-2GGH1 39100-2GGH2 |
UMAHNC4EMA5A UMAHNC4EMA5B UMAHNC4EMA6A UMAHNC4EMA6B UMAHNC4EMA6L UMAHNC4EMA6N UMAHNC4EMA6R UMAHNC4EMA6P |
UMAHNC4EMA6T | |||
| 17MY Sor. (UMa) AWD | 2.0T (ULEV) | Yes | 39100-2GTD7 | UMAHNC0ERA5A UMAHNC0ERA6A UMAHNC0ERA6B UMAHNC0ERA6L UMAHNC0ERA6N UMAHNC0ERA6P |
UMAHNC0ERA6R |
| No | 39100-2GTD2 | UMAHNC0EMA5A UMAHNC0EMA6A UMAHNC0EMA6B UMAHNC0EMA6L UMAHNC0EMA6N UMAHNC0EMA6P |
UMAHNC0EMA6R | ||
| 16MY Opt. (JF/JFa) | 2.4 (ULEV) | Yes | 39108-2GGC5 | JFAGNC4ERB0A JFAGNC4ERB0B JFAGNC4ERC0A JFAGNC4ERC3A JFAGNC4ERC3K JFAGNC4ERC3L |
JFAGNC4ERC3M |
| 39108-2GGC5 | JFAGNC4ERD11 JFAGNC4ERD1K JFAGNC4ERD1L |
JFAGNC4ERD1M | |||
| No | 39108-2GGC0 | JFAGNC4EMB0A JFAGNC4EMB0B JFAGNC4EMC0A JFAGNC4EMC3A JFAGNC4EMC3K JFAGNC4EMC3L |
JFAGNC4EMC3M | ||
| 39108-2GGC0 | JFAGNC4EMD11 JFAGNC4EMD1K JFAGNC4EMD1L |
JFAGNC4EMD1M | |||
| 2.4 (SULEV) | Yes | 39108-2GGD5 | JFAGNS4ERB0A JFAGNS4ERB0B JFAGNS4ERC0A JFAGNS4ERC3A JFAGNS4ERC3K JFAGNS4ERC3L |
JFAGNS4ERC3M | |
| 39108-2GGD5 | JFAGNS4ERD11 JFAGNS4ERD1K JFAGNS4ERD1L |
JFAGNS4ERD1M | |||
| No | 39108-2GGD0 | JFAGNS4EMB0A JFAGNS4EMB0B JFAGNS4EMC0A JFAGNS4EMC3A JFAGNS4EMC3K JFAGNS4EMC3L |
JFAGNS4EMC3M | ||
| 39108-2GGD0 | JFAGNS4EMD11 JFAGNS4EMD1K JFAGNS4EMD1L |
JFAGNS4EMD1M | |||
| 16MY Opt. (JFa) | 2.0T (ULEV) | Yes | 39108-2GTK5 | JFAGNC0ERB0A JFAGNC0ERB0B JFAGNC0ERB4A JFAGNC0ERB4K |
JFAGNC0ERB4L |
| No | 39108-2GTK0 | JFAGNC0EMB0A JFAGNC0EMB0B JFAGNC0EMB4A JFAGNC0EMB4K |
JFAGNC0EMB4L | ||
| 16MY Spo. (SL) | 2.4 (ULEV) | Yes | 39107-2GCD3 39107-2GCE3 39117-2GCD3 39117-2GCE3 |
SGC4RH4A SGC4RH4B SGC4RH4K SGC4RH4L |
SGC4RH4M |
| No | 39107-2GCD8 39107-2GCE8 39117-2GCD8 39117-2GCE8 |
SGC4MH4A SGC4MH4B SGC4MH4K SGC4MH4L |
SGC4MH4M | ||
| 2.0T (ULEV) | Yes | 39107-2GCC3 | SGC0RH4A SGC0RH4K |
SGC0RH4L | |
| No | 39107-2GCC8 | SGC0MH4A SGC0MH4K |
SGC0MH4L | ||
| 2.4 (SULEV) | Yes | 39107-2GCG3 | SGS4RH4A SGS4RH4B SGS4RH4K SGS4RH4L SGS4RH4M |
SGS4RH4N | |
| No | 39107-2GCG8 | SGS4MH4A SGS4MH4B SGS4MH4K SGS4MH4L SGS4MH4M |
SGS4MH4N | ||
| 17MY Opt. (JF/JFa) | 2.4 (ULEV) | Yes | 39108-2GGC6 | JFAHNC4ERC3A JFAHNC4ERC3B JFAHNC4ERC31 JFAHNC4ERC32 JFAHNC4ERC34 |
JFAHNC4ERC35 |
| 39108-2GGC8 | JFAHNC4ERD1A JFAHNC4ERD11 JFAHNC4ERD12 JFAHNC4ERD14 |
JFAHNC4ERD15 | |||
| No | 39108-2GGC1 | JFAHNC4EMC3A JFAHNC4EMC3B JFAHNC4EMC31 JFAHNC4EMC32 JFAHNC4EMC34 |
JFAHNC4EMC3C | ||
| 39108-2GGC3 | JFAHNC4EMD1A JFAHNC4EMD11 JFAHNC4EMD12 JFAHNC4EMD14 |
JFAHNC4EMD1B | |||
| 39108-2GGL1 | JFAHNC4EMC3K JFAHNC4EMC3L JFAHNC4EMC35 JFAHNC4EMC36 JFAHNC4EMC38 |
JFAHNC4EMC3M | |||
| 39100-2GGL2 | JFAHNC4EMD1K JFAHNC4EMD15 JFAHNC4EMD16 JFAHNC4EMD18 |
JFAHNC4EMD1L | |||
| 2.4 (SULEV) | Yes | 39108-2GGD6 | JFAHNS4ERC3A JFAHNS4ERC3B JFAHNS4ERC31 JFAHNS4ERC32 JFAHNS4ERC34 |
JFAHNS4ERC35 | |
| 39108-2GGD8 | JFAHNS4ERD1A JFAHNS4ERD11 JFAHNS4ERD12 JFAHNS4ERD14 |
JFAHNS4ERD15 | |||
| No | 39108-2GGD1 | JFAHNS4EMC3A JFAHNS4EMC3B JFAHNS4EMC31 JFAHNS4EMC32 JFAHNS4EMC34 |
JFAHNS4EMC3C | ||
| 39108-2GGD3 | JFAHNS4EMD1A JFAHNS4EMD11 JFAHNS4EMD12 JFAHNS4EMD14 |
JFAHNS4EMD1B | |||
| 39108-2GGM1 | JFAHNS4EMC3K JFAHNS4EMC3L JFAHNS4EMC35 JFAHNS4EMC36 JFAHNS4EMC38 |
JFAHNS4EMC3M | |||
| 39100-2GGM2 | JFAHNS4EMD1K JFAHNS4EMD15 JFAHNS4EMD16 JFAHNS4EMD18 |
JFAHNS4EMD1L | |||
| 17MY Opt. (JFa) | 2.0T (ULEV) | Yes | 39108-2GTK6 | JFAHNC0ERC3A JFAHNC0ERC3B JFAHNC0ERC3K JFAHNC0ERC3L |
JFAHNC0ERC3N |
| No | 39108-2GTK1 | JFAHNC0EMC3A JFAHNC0EMC3B JFAHNC0EMC3K JFAHNC0EMC3L |
JFAHNC0EMC3N | ||
| 17MY Spo. (QL) 2WD | 2.4 (ULEV) | Yes | 39100-2GHR5 | QLDGNC4ERB2A QLDHNC4ERB2A QLDHNC4ERB4A QLDHNC4ERB4B QLDHNC4ERB41 QLDHNC4ERB42 QLDHNC4ERB44 |
QLDHNC4ERB4C |
| No | 39100-2GHS0 | QLDGNC4EMB2A QLDHNC4EMB2A QLDHNC4EMB4A QLDHNC4EMB4B QLDHNC4EMB41 QLDHNC4EMB42 QLDHNC4EMB44 |
QLDHNC4EMB4C | ||
| 2.4 (SULEV) | Yes | 39100-2GHT5 | QLDGNS4ERB2A QLDHNS4ERB2A QLDHNS4ERB4A QLDHNS4ERB4B QLDHNS4ERB41 QLDHNS4ERB42 QLDHNS4ERB44 |
QLDHNS4ERB4C | |
| No | 39100-2GHV0 | QLDGNS4EMB2A QLDHNS4EMB2A QLDHNS4EMB4A QLDHNS4EMB4B QLDHNS4EMB41 QLDHNS4EMB42 QLDHNS4EMB44 |
QLDHNS4EMB4C | ||
| 17MY Spo. (QL) 4WD | 2.4 (ULEV) | Yes | 39100-2GHS5 | QLDGNC4ERB2K QLDHNC4ERB2K QLDHNC4ERB4K QLDHNC4ERB4L QLDHNC4ERB45 QLDHNC4ERB46 QLDHNC4ERB48 |
QLDHNC4ERB4M |
| No | 39100-2GHT0 | QLDGNC4EMB2K QLDHNC4EMB2K QLDHNC4EMB4K QLDHNC4EMB4L QLDHNC4EMB45 QLDHNC4EMB46 QLDHNC4EMB48 |
QLDHNC4EMB4M | ||
| 2.4 (SULEV) | Yes | 39100-2GHV5 | QLDGNS4ERB2K QLDHNS4ERB2K QLDHNS4ERB4K QLDHNS4ERB4L QLDHNS4ERB45 QLDHNS4ERB46 QLDHNS4ERB48 |
QLDHNS4ERB4M | |
| No | 39100-2GHW0 | QLDGNS4EMB2K QLDHNS4EMB2K QLDHNS4EMB4K QLDHNS4EMB4L QLDHNS4EMB45 QLDHNS4EMB46 QLDHNS4EMB48 |
QLDHNS4EMB4M | ||
| 17MY Spo. (QL) 2WD | 2.0T (ULEV) | Yes | 39100-2GHJ0 | QLDGNC0ERB2A QLDHNC0ERB4A QLDHNC0ERB4B QLDHNC0ERB4C QLDHNC0ERB41 QLDHNC0ERB42 |
QLDHNC0ERB44 |
| No | 39100-2GHJ5 | QLDGNC0EMB2A QLDHNC0EMB4A QLDHNC0EMB4B QLDHNC0EMB4C QLDHNC0EMB41 QLDHNC0EMB42 |
QLDHNC0EMB44 | ||
| 17MY Spo. (QL) 4WD | 2.0T (ULEV) | Yes | 39100-2GHK0 | QLDGNC0ERB2K QLDHNC0ERB4K QLDHNC0ERB4L QLDHNC0ERB4M QLDHNC0ERB45 QLDHNC0ERB46 |
QLDHNC0ERB48 |
| No | 39100-2GHK5 | QLDGNC0EMB2K QLDHNC0EMB4K QLDHNC0EMB4L QLDHNC0EMB4M QLDHNC0EMB45 QLDHNC0EMB45 |
QLDHNC0EMB48 | ||
| 18MY Sor. (UMa) 2WD | 2.4 (ULEV) | Yes | 39100-2GGF8 | UMAINC4ERA6A UMAINC4ERA7A UMAINC4ERA7B UMAINC4ERD5A UMAINC4ERD5B UMAINC4ERD5K UMAINC4ERD5M UMAINC4ERD5O UMAINC4ERD5Q |
UMAINC4ERD5S |
| No | 39100-2GGF3 | UMAINC4EMA6A UMAINC4EMA7A UMAINC4EMA7B UMAINC4EMD5A UMAINC4EMD5B UMAINC4EMD5K UMAINC4EMD5M UMAINC4EMD5O UMAINC4EMD5Q |
UMAINC4EMD5S | ||
| 18MY Sor. (UMa) 4WD | 2.4 (ULEV) | Yes | 39100-2GGH8 | UMAINC4ERA6A UMAINC4ERA7A UMAINC4ERA7B UMAINC4ERD5A UMAINC4ERD5B UMAINC4ERD5L UMAINC4ERD5N UMAINC4ERD5P UMAINC4ERD5R |
UMAINC4ERD5T |
| No | 39100-2GGH3 | UMAINC4EMA6A UMAINC4EMA7A UMAINC4EMA7B UMAINC4EMD5A UMAINC4EMD5B UMAINC4EMD5L UMAINC4EMD5N UMAINC4EMD5P UMAINC4EMD5R |
UMAINC4EMD5T | ||
| 18MY Sor. (UMa) 2WD | 2.0T (ULEV) | Yes | 39100-2GTC8 | UMAINC0ERA6A UMAINC0ERA7A UMAINC0ERA7B UMAINC0ERA7C UMAINC0ERA8K UMAINC0ERA8M UMAINC0ERA8O |
UMAINC0ERA8Q |
| No | 39100-2GTC3 | UMAINC0EMA6A UMAINC0EMA7A UMAINC0EMA7B UMAINC0EMA7C UMAINC0EMA8K UMAINC0EMA8M UMAINC0EMA8O |
UMAINC0EMA8Q | ||
| 18MY Sor. (UMA) 4WD | 2.0T (ULEV) | Yes | 39100-2GTD8 | UMAINC0ERA6A UMAINC0ERA7A UMAINC0ERA7B UMAINC0ERA7C UMAINC0ERA8L UMAINC0ERA8N UMAINC0ERA8P |
UMAINC0ERA8R |
| No | 39100-2GTD3 | UMAINC0EMA6A UMAINC0EMA7A UMAINC0EMA7B UMAINC0EMA7C UMAINC0EMA8L UMAINC0EMA8N UMAINC0EMA8P |
UMAINC0EMA8R | ||
| 18MY Opt. (JF/JFa) | 2.4 (ULEV) | Yes | 39108-2GGC7 | JFAINC4ERDAA JFAINC4ERDAB JFAINC4ERD5A JFAINC4ERD5B JFAINC4ERD5K JFAINC4ERD5L JFAINC4ERD5N |
JFAINC4ERD5O |
| No | 39108-2GGC2 | JFAINC4EMDAA JFAINC4EMDAB JFAINC4EMD5A JFAINC4EMD5B JFAINC4EMD5K JFAINC4EMD5L JFAINC4EMD5N |
JFAINC4EMD5O | ||
| 2.4 (SULEV) | Yes | 39108-2GGD7 | JFAINS4ERDAA JFAINS4ERDAB JFAINS4ERD5A JFAINS4ERD5B JFAINS4ERD5K JFAINS4ERD5L JFAINS4ERD5N |
JFAINS4ERD5O | |
| No | 39108-2GGD2 | JFAINS4EMDAA JFAINS4EMDAB JFAINS4EMD5A JFAINS4EMD5B JFAINS4EMD5K JFAINS4EMD5L JFAINS4EMD5N |
JFAINS4EMD5O | ||
| 18MY Opt. (JFa) | 2.0T (ULEV) | Yes | 39108-2GTK7 | JFAINC0ERCAA JFAINC0ERCAB JFAINC0ERCAC JFAINC0ERCAK JFAINC0ERCAL |
JFAINC0ERCAN |
| No | 39108-2GTK2 | JFAINC0EMCAA JFAINC0EMCAB JFAINC0EMCAC JFAINC0EMCAK JFAINC0EMCAL |
JFAINC0EMCAN | ||
| 18MY Spo. (QL) 2WD | 2.4 (ULEV) | Yes | 39100-2GHR6 | QLDINC4ERC3A QLDINC4ERCAA QLDINC4ERCAB QLDINC4ERD5A QLDINC4ERD51 QLDINC4ERD52 QLDINC4ERD54 |
QLDINC4ERD5B |
| No | 39100-2GHS1 | QLDINC4EMC3A QLDINC4EMCAA QLDINC4EMCAB QLDINC4EMD5A QLDINC4EMD51 QLDINC4EMD52 QLDINC4EMD54 |
QLDINC4EMD5B | ||
| 2.4 (SULEV) | Yes | 39100-2GHT6 | QLDINS4ERC3A QLDINS4ERCAA QLDINS4ERCAB QLDINS4ERD5A QLDINS4ERD51 QLDINS4ERD52 QLDINS4ERD54 |
QLDINS4ERD5B | |
| No | 39100-2GHV1 | QLDINS4EMC3A QLDINS4EMCAA QLDINS4EMCAB QLDINS4EMD5A QLDINS4EMD51 QLDINS4EMD52 QLDINS4EMD54 |
QLDINS4EMD5B | ||
| 18MY Spo. (QL) 4WD | 2.4 (ULEV) | Yes | 39100-2GHS6 | QLDINC4ERC3K QLDINC4ERCAK QLDINC4ERCAM QLDINC4ERD5K QLDINC4ERD55 QLDINC4ERD56 QLDINC4ERD58 |
QLDINC4ERD5L |
| No | 39100-2GHT1 | QLDINC4EMC3K QLDINC4EMCAK QLDINC4EMCAM QLDINC4EMD5K QLDINC4EMD55 QLDINC4EMD56 QLDINC4EMD58 |
QLDINC4EMD5L | ||
| 2.4 (SULEV) | Yes | 39100-2GHV6 | QLDINS4ERC3K QLDINS4ERCAK QLDINS4ERCAM QLDINS4ERD5K QLDINS4ERD55 QLDINS4ERD56 QLDINS4ERD58 |
QLDINS4ERD5L | |
| No | 39100-2GHW1 | QLDINS4EMC3K QLDINS4EMCAK QLDINS4EMCAM QLDINS4EMD5K QLDINS4EMD55 QLDINS4EMD56 QLDINS4EMD58 |
QLDINS4EMD5L | ||
| 18MY Spo. (QL) 2WD | 2.0T (ULEV) | Yes | 39100-2GHJ1 | QLDINC0ERB4A QLDINC0ERB5A QLDINC0ERB5B QLDINC0ERD5A QLDINC0ERD51 QLDINC0ERD52 |
QLDINC0ERD54 |
| No | 39100-2GHJ6 | QLDINC0EMB4A QLDINC0EMB5A QLDINC0EMB5B QLDINC0EMD5A QLDINC0EMD51 QLDINC0EMD52 |
QLDINC0EMD54 | ||
| 18MY Spo. (QL) 4WD | 2.0T (ULEV) | Yes | 39100-2GHK1 | QLDINC0ERB4K QLDINC0ERB5K QLDINC0ERB5M QLDINC0ERD5K QLDINC0ERD55 QLDINC0ERD56 |
QLDINC0ERD58 |
| No | 39100-2GHK6 | QLDINC0EMB4K QLDINC0EMB5K QLDINC0EMB5M QLDINC0EMD5K QLDINC0EMD55 QLDINC0EMD56 |
QLDINC0EMD58 | ||
To verify the vehicle is affected, be sure to check the Calibration Identification of the vehicle's ECM ROM ID and reference the Information Table as necessary.
NOTE:
Prior to performing the ECU upgrade, be sure to check that the KDS is fully charged.
- Connect the VCI-II to the OBD-II connector, located under the driver's side of the instrument panel.NOTE: The ECU upgrade function on KDS operates wirelessly. It is not necessary to perform the upgrade via USB cable.
- With the ignition ON, turn ON the KDS tablet. Select KDS
from the home screen.
- Confirm communication with VCI (A) and then configure the vehicle (B) using the AUTO VIN
(C) feature.
- Select ECU Upgrade
.

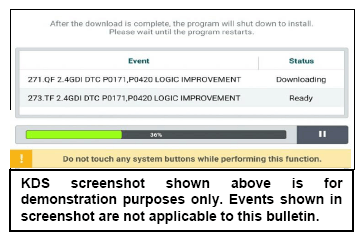

- The KDS will check the server for recently uploaded Events and then automatically download the applicable Upgrade Event
, listed on page 3.NOTE: The vehicle must be identified in Vehicle Selection to download an Event for that vehicle.
KDS screenshot shown above is for demonstration purposes only. Events shown in screenshot are not applicable to this bulletin.

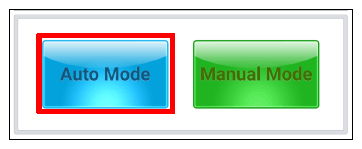

- Select Auto Mode. NOTE: Do NOT attempt to perform a Manual Mode upgrade UNLESS Auto Mode fails . Always follow the instructions given on the KDS in either Auto or Manual mode.

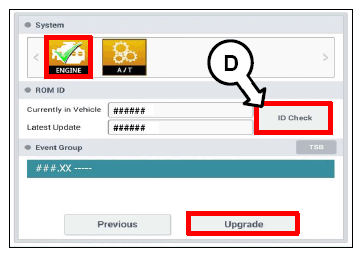

- Select the ENGINE
system under the System selection menu.
Touch ID Check (D) and confirm that the latest update is available.
Select the applicable Upgrade Event and select Upgrade to continue.

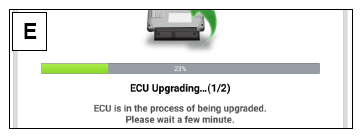

- The ECU upgrade will begin and the progress of the upgrade will appear on the bar graph. Upgrade part (1/2) (E) will download the upgrade event to the VCI-II. Upgrade part (2/2) (F) will upgrade the ECU.NOTE: Do not touch the system buttons (like 'Back', 'Home', 'etc.') while performing ECU Upgrade.

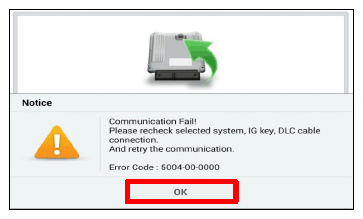

- If a "Communication Fail" screen appears, verify that the VCI-II and KDS are communicating properly. Touch OK and restart the procedure from step 4.NOTE: If an error notice continues to appear or if the upgrade cannot be performed, DO NOT disconnect the KDS/VCI-II. Contact GIT America Help Desk at (888) 542-4371 or Techline.

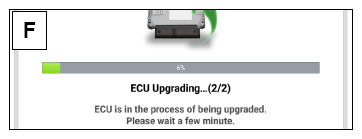

- When instructed on the KDS, turn the ignition OFF for ten (10) seconds then back on. Touch OK to continue.NOTE: If applicable and instructed on the KDS, leave the ignition ON for five (5) seconds to perform ETC Adaptive Learning.

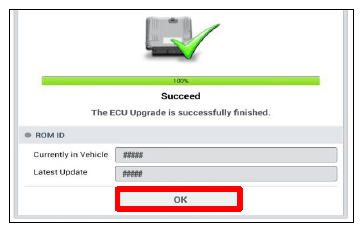

- Once the upgrade is complete, touch OK to finalize the procedure.

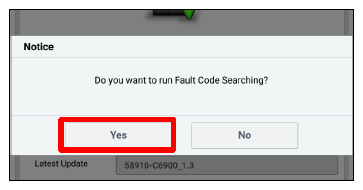

- When prompted, select YES
to check for Diagnostic Trouble Codes (DTC) and erase any DTCs stored such as EPS, ESC, and TPMS that may have been set during the upgrade.
- Start the engine to confirm proper operation of the vehicle.
MANUAL UPGRADE PROCEDURE
NOTE:
The manual upgrade should ONLY be performed if the automatic upgrade fails.
If the automatic upgrade fails, turn the ignition OFF for about 10 seconds then place it back in the ON position to reset the control unit BEFORE performing manual upgrade.
See table below for Manual Mode passwords.
If the automatic upgrade fails, turn the ignition OFF for about 10 seconds then place it back in the ON position to reset the control unit BEFORE performing manual upgrade.
See table below for Manual Mode passwords.
NOTE:
It is recommended to ALWAYS check the Electronic Parts Catalog (EPC) to locate the ECU Part Number respective to Manual Mode upgrade passwords. DO NOT reference the parts label affixed to the ECU.
- Within the ECU Upgrade screen displayed, select Manual Mode .
- Select the ENGINE system under the System selection menu. Select the applicable Upgrade Event listed on page 3 and select Upgrade to continue.
- Select the appropriate control unit part number with reference to the ROM ID Information Table on pages 4-14, and select OK .
- Enter the appropriate password from the Manual Mode password table above and select OK .
- The upgrade will begin and the progress of the upgrade will appear on the bar graph.
- When instructed on the KDS, turn the ignition OFF for ten (10) seconds then back on. Touch OK to continue.
- Once the upgrade is complete, touch OK to finalize the procedure.
- When prompted, select YES to check for Diagnostic Trouble Codes (DTC) and erase any DTCs stored such as EPS, ESC, and TPMS that may have been set during the upgrade.
- Start the engine to confirm proper operation of the vehicle.
MANUAL MODE ECU UPGRADE PASSWORDS
| Model | Menu | P/W |
|---|---|---|
| TF 2.0L-T | TF F/L 2.0 TGDI -IMMO 14MY(ULEV/4WD): 39108-2GBG0/G1 | 4608 |
| TF F/L 2.0 TGDI +IMMO/SMK 14MY(ULEV/4WD): 39108-2GBG5/G6 | 4609 | |
| TF F/L 2.0 TGDI +IMMO/SMK 15MY(ULEV/4WD): 39108-2GBG7 | 4610 | |
| QF 2.0L-T | QF 2.0 T-GDI -IMMO 15MY(ULEV/4WD): 39108-2GBK2/K3 | 4705 |
| QF 2.0 T-GDI +IMMO/SMK 15MY(ULEV/4WD): 39108-2GBK7/K8 | 4706 | |
| SL 2.0L-T | SL 2.0T-GDI -IMMO 14MY(ULEV/4WD): 39107-2GCC5 | 4813 |
| SL 2.0T-GDI +IMMO/SMK 14MY(ULEV/4WD): 39107-2GCC0 | 4814 | |
| SL 2.0T-GDI -IMMO 15MY(ULEV/4WD): 39107-2GCC6/C7 | 4815 | |
| SL 2.0T-GDI +IMMO/SMK 15MY(ULEV/4WD): 39107-2GCC1/C2 | 4816 | |
| SL 2.0T-GDI -IMMO 15MY(ULEV/4WD): 39107-2GCC8 | 4817 | |
| SL 2.0T-GDI +IMMO/SMK 15MY(ULEV/4WD): 39107-2GCC3 | 4818 | |
| UMa 2.0L-T | UMA 2.0 T-GDI -IMMO 16MY(ULEV/2WD): 39100-2GTC0 [2WD_UMAFNC0EM91A/92A/921/92K] | 4917 |
| UMA 2.0 T-GDI -IMMO 16MY(ULEV/4WD): 39100-2GTD0 [4WD_UMAFNC0EM91A/92A/921/92L] | 4918 | |
| UMA 2.0 T-GDI +IMMO/SMK 16MY(ULEV/2WD): 39100-2GTC5 [2WD_UMAFNC0ER91A/92A/921/92K] | 4919 | |
| UMA 2.0 T-GDI +IMMO/SMK 16MY(ULEV/4WD): 39100-2GTD5 [4WD_UMAFNC0ER91A/92A/921/92L] | 4920 | |
| UMA 2.0 T-GDI -IMMO 16MY(ULEV/2WD): 39100-2GTC1 [2WD_UMAGNC0EMA3A/A5A/A61/A6K] | 4921 | |
| UMA 2.0 T-GDI -IMMO 16MY(ULEV/4WD): 39100-2GTD1 [4WD_UMAGNC0EMA3A/A5A/A61/A6L] | 4922 | |
| UMA 2.0 T-GDI +IMMO/SMK 16MY(ULEV/2WD): 39100-2GTC6 [2WD_UMAGNC0ERA3A/A5A/A61/A6K] | 4923 | |
| UMA 2.0 T-GDI +IMMO/SMK 16MY(ULEV/4WD): 39100-2GTD6 [4WD_UMAGNC0ERA3A/A5A/A61/A6L] | 4924 | |
| UMA 2.0 T-GDI -IMMO 17MY(ULEV/2WD): 39100-2GTC2 [2WD_UMAHNC0EMA5A/A6A/A6B/A6K/A6M] | 4925 | |
| UMA 2.0 T-GDI -IMMO 17MY(ULEV/4WD): 39100-2GTD2 [4WD_UMAHNC0EMA5A/A6A/A6B/A6L/A6N] | 4926 | |
| UMA 2.0 T-GDI +IMMO/SMK 17MY(ULEV/2WD): 39100-2GTC7 [2WD_UMAHNC0ERA5A/A6A/A6B/A6K/A6M] | 4927 | |
| UMA 2.0 T-GDI +IMMO/SMK 17MY(ULEV/4WD): 39100-2GTD7 [4WD_UMAHNC0ERA5A/A6A/A6B/A6L/A6N] | 4928 | |
| UMA 2.0 T-GDI -IMMO 18MY(ULEV/2WD): 39100-2GTC3 [2WD_UMAINC0EMA6A/A7A/A7B/A7C/A8K/A8M] | 4929 | |
| UMA 2.0 T-GDI -IMMO 18MY(ULEV/4WD): 39100-2GTD3 [4WD_UMAINC0EMA6A/A7A/A7B/A7C/A8L/A8N] | 4930 | |
| UMA 2.0 T-GDI +IMMO/SMK 18MY(ULEV/2WD): 39100-2GTC8 [2WD_UMAINC0ERA6A/A7A/A7B/A7C/A8K/A8M] | 4931 | |
| UMA 2.0 T-GDI +IMMO/SMK 18MY(ULEV/4WD): 39100-2GTD8 [4WD_UMAINC0ERA6A/A7A/A7B/A7C/A8L/A8N] | 4932 | |
| JF/JFa 2.0L-T | JF/JFA 2.0 TGDI -IMMO 16MY(ULEV): 39108-2GTK0 | 5025 |
| JF/JFA 2.0 TGDI +IMMO/SMK 16MY(ULEV): 39108-2GTK5 | 5026 | |
| JF/JFA 2.0 TGDI -IMMO 17MY(ULEV): 39108-2GTK1 | 5027 | |
| JF/JFA 2.0 TGDI +IMMO/SMK 17MY(ULEV): 39108-2GTK6 | 5028 | |
| JF/JFA 2.0 TGDI -IMMO 18MY(ULEV): 39108-2GTK2 | 5029 | |
| JF/JFA 2.0 TGDI +IMMO/SMK 18MY(ULEV): 39108-2GTK7 | 5030 | |
| QL 2.0L-T | QL 2.0 TGDI -IMMO 17MY(ULEV/2WD): 39100-2GHJ5 | 5117 |
| QL 2.0 TGDI +IMMO/SMK 17MY(ULEV/2WD): 39100-2GHJ0 | 5118 | |
| QL 2.0 TGDI -IMMO 17MY(ULEV/4WD): 39100-2GHK5 | 5119 | |
| QL 2.0 TGDI +IMMO/SMK 17MY(ULEV/4WD): 39100-2GHK0 | 5120 | |
| QL 2.0 TGDI -IMMO 18MY(ULEV/2WD): 39100-2GHJ6 | 5121 | |
| QL 2.0 TGDI +IMMO/SMK 18MY(ULEV/2WD): 39100-2GHJ1 | 5122 | |
| QL 2.0 TGDI -IMMO 18MY(ULEV/4WD): 39100-2GHK6 | 5123 | |
| QL 2.0 TGDI +IMMO/SMK 18MY(ULEV/4WD): 39100-2GHK1 | 5124 | |
| XMa 2.4L | XMA 2.4GDI -IMMO 15MY(4WD): 39113-2GBK1/K2/L1/L2 | 4501 |
| XMA 2.4GDI +IMMO/SMK 15MY(4WD): 39113-2GBK6/K7/L6/L7 | 4502 | |
| TF 2.4L | TF F/L 2.4 GDI -IMMO 14MY(ULEV/4WD): 39108/18-2GBE0 | 4601 |
| TF F/L 2.4 GDI +IMMO/SMK 14MY(ULEV/4WD): 39108/18-2GBF0 | 4602 | |
| TF F/L 2.4 GDI -IMMO 14MY(SULEV/4WD): 39108-2GBE5 | 4603 | |
| TF F/L 2.4 GDI +IMMO/SMK 14MY(SULEV/4WD): 39108-2GBF5 | 4604 | |
| TF F/L 2.4 GDI -IMMO 15MY(ULEV/4WD): 39108/18-2GBE1 | 4605 | |
| TF F/L 2.4 GDI +IMMO/SMK 15MY(ULEV/4WD): 39108-2GBF1 | 4606 | |
| TF F/L 2.4 GDI -IMMO 15MY(SULEV/4WD): 39108-2GBE6 | 4607 | |
| QF 2.4L | QF 2.4 GDI -IMMO 15MY(ULEV/4WD): 39108-2GBH1/H2, 39118-2GBH1 | 4701 |
| QF 2.4 GDI +IMMO/SMK 15MY(ULEV/4WD): 39108-2GBJ1/J2, 39118-2GBJ1 | 4702 | |
| QF 2.4 GDI -IMMO 15MY(SULEV/4WD): 39108-2GBH6/H7 | 4703 | |
| QF 2.4 GDI +IMMO/SMK 15MY(SULEV/4WD): 39108-2GBJ6/J7 | 4704 | |
| SL 2.4L | SL 2.4 GDI -IMMO 14MY(ULEV/4WD): 39107-2GCD5/E5, 39117-2GCD5/E5 | 4801 |
| SL 2.4 GDI +IMMO/SMK 14MY(ULEV/4WD): 39107-2GCD0/E0, 39117-2GCD0/E0 | 4802 | |
| SL 2.4 GDI -IMMO 14MY(SULEV/4WD): 39107-2GCG5 | 4803 | |
| SL 2.4 GDI +IMMO/SMK 14MY(SULEV/4WD): 39107-2GCG0 | 4804 | |
| SL 2.4 GDI -IMMO 15MY(ULEV/4WD): 39107-2GCD6/D7/E6/E7, 39117-2GCD6/E6 | 4805 | |
| SL 2.4 GDI +IMMO/SMK 15MY(ULEV/4WD): 39107-2GCD1/D2/E1/E2, 39117-2GCD1/E1 | 4806 | |
| SL 2.4 GDI -IMMO 15MY(SULEV/4WD): 39107-2GCG6/G7 | 4807 | |
| SL 2.4 GDI +IMMO/SMK 15MY(SULEV/4WD): 39107-2GCG1/G2 | 4808 | |
| SL 2.4 GDI -IMMO 16MY(ULEV/4WD): 39107-2GCD8/E8, 39117-2GCD8/E8 | 4809 | |
| SL 2.4 GDI +IMMO/SMK 16MY(ULEV/4WD): 39107-2GCD3/E3, 39117-2GCD3/E3 | 4810 | |
| SL 2.4 GDI -IMMO 16MY(SULEV/4WD): 39107-2GCG8 | 4811 | |
| SL 2.4 GDI +IMMO/SMK 16MY(SULEV/4WD): 39107-2GCG3 | 4812 | |
| UMa 2.4L | UMA 2.4 GDI -IMMO 15~16MY(ULEV/2WD): 39100-2GGF0 [2WD_UMAFNC4EM91A/92A/A31/A51/A52/A6K/A6Q] | 4901 |
| UMA 2.4 GDI -IMMO 15~16MY(ULEV/4WD): 39100-2GGH0 [4WD_UMAFNC4EM91A/92A/A31/A51/A52/A6L/A6O/A6R] | 4902 | |
| UMA 2.4 GDI -IMMO 15~16MY(ULEV/2WD): 39100-2GGF1 [2WD_UMAFNC4EMA3A/A5A/A5B/A5C/A6M/A6S] | 4903 | |
| UMA 2.4 GDI -IMMO 15~16MY(ULEV/4WD): 39100-2GGH1 [4WD_UMAFNC4EMA3A/A5A/A5B/A5C/A6N/A6P/A6T] | 4904 | |
| UMA 2.4 GDI -IMMO 15~17MY(ULEV/2WD): 39100-2GGF1/F2 [2WD_UMAHNC4EMA5A/A5B/A6A/A6B/A6K/A6M/A6Q/A6O] | 4905 | |
| UMA 2.4 GDI -IMMO 15~17MY(ULEV/4WD): 39100-2GGH1/H2 [4WD_UMAHNC4EMA5A/A5B/A6A/A6B/A6L/A6N/A6R/A6P] | 4906 | |
| UMA 2.4 GDI +IMMO/SMK 15~16MY(ULEV/2WD): 39100-2GGF5 [2WD_UMAFNC4ER91A/92A/A31/A51/A52/A6K/A6Q] | 4907 | |
| UMA 2.4 GDI +IMMO/SMK 15~16MY(ULEV/4WD): 39100-2GGH5 [4WD_UMAFNC4ER91A/92A/A31/A51/A52/A6L/A6O/A6R] | 4908 | |
| UMA 2.4 GDI +IMMO/SMK 15~16MY(ULEV/2WD): 39100-2GGF6 [2WD_UMAFNC4ERA3A/A5A/A5B/A5C/A6M/A6S] | 4909 | |
| UMA 2.4 GDI +IMMO/SMK 15~16MY(ULEV/4WD): 39100-2GGH6 [4WD_UMAFNC4ERA3A/A5A/A5B/A5C/A6N/A6P/A6T] | 4910 | |
| UMA 2.4 GDI +IMMO/SMK 15~17MY(ULEV/2WD): 39100-2GGF6/F7 [2WD_UMAHNC4ERA5A/A5B/A6A/A6B/A6K/A6M/A6Q/A6O] | 4911 | |
| UMA 2.4 GDI +IMMO/SMK 15~17MY(ULEV/4WD): 39100-2GGH6/H7 [4WD_UMAHNC4ERA5A/A5B/A6A/A6B/A6L/A6N/A6R/A6P] | 4912 | |
| UMA 2.4 GDI -IMMO 18MY(ULEV/2WD): 39100-2GGF3 [2WD_UMAINC4EMA6A/A7A/A7B/D5A/D5B/D5K/D5M/D5Q] | 4913 | |
| UMA 2.4 GDI -IMMO 18MY(ULEV/4WD): 39100-2GGH3 [4WD_UMAINC4EMA6A/A7A/A7B/D5A/D5B/D5L/D5N/D5R] | 4914 | |
| UMA 2.4 GDI +IMMO/SMK 18MY(ULEV/2WD): 39100-2GGF8 [2WD_UMAINC4ERA6A/A7A/A7B/D5A/D5B/D5K/D5M/D5Q] | 4915 | |
| UMA 2.4 GDI +IMMO/SMK 18MY(ULEV/4WD): 39100-2GGH8 [4WD_UMAINC4ERA6A/A7A/A7B/D5A/D5B/D5L/D5N/D5R] | 4916 | |
| JF/Fa 2.4L | JF/JFA 2.4 GDI -IMMO 16MY(ULEV/4WD): 39108-2GGC0 | 5001 |
| JF/JFA 2.4 GDI +IMMO/SMK 16MY(ULEV/4WD): 39108-2GGC5 | 5002 | |
| JF/JFA 2.4 GDI -IMMO 16MY(SULEV/4WD): 39108-2GGD0 | 5003 | |
| JF/JFA 2.4 GDI +IMMO/SMK 16MY(SULEV/4WD): 39108-2GGD5 | 5004 | |
| JF/JFA 2.4 GDI -IMMO 16MY(ULEV/4WD): 39108-2GGC0 | 5005 | |
| JF/JFA 2.4 GDI +IMMO/SMK 16MY(ULEV/4WD): 39108-2GGC5 | 5006 | |
| JF/JFA 2.4 GDI -IMMO 16MY(SULEV/4WD): 39108-2GGD0 | 5007 | |
| JF/JFA 2.4 GDI +IMMO/SMK 16MY(SULEV/4WD): 39108-2GGD5 | 5008 | |
| JF/JFA 2.4 GDI -IMMO 17MY(ULEV): 39108-2GGC1 | 5009 | |
| JF/JFA 2.4 GDI -IMMO 17MY(ULEV): 39108-2GGC3 | 5010 | |
| JF/JFA 2.4 GDI -IMMO 17MY(ULEV): 39108-2GGL1 | 5011 | |
| JF/JFA 2.4 GDI -IMMO 17MY(ULEV): 39100-2GGL2 | 5012 | |
| JF/JFA 2.4 GDI +IMMO/SMK 17MY(ULEV): 39108-2GGC6 | 5013 | |
| JF/JFA 2.4 GDI +IMMO/SMK 17MY(ULEV): 39108-2GGC8 | 5014 | |
| JF/JFA 2.4 GDI -IMMO 17MY(SULEV): 39108-2GGD1 | 5015 | |
| JF/JFA 2.4 GDI -IMMO 17MY(SULEV): 39108-2GGD3 | 5016 | |
| JF/JFA 2.4 GDI -IMMO 17MY(SULEV): 39108-2GGM1 | 5017 | |
| JF/JFA 2.4 GDI -IMMO 17MY(SULEV): 39100-2GGM2 | 5018 | |
| JF/JFA 2.4 GDI +IMMO/SMK 17MY(SULEV): 39108-2GGD6 | 5019 | |
| JF/JFA 2.4 GDI +IMMO/SMK 17MY(SULEV): 39108-2GGD8 | 5020 | |
| JF/JFA 2.4 GDI -IMMO 18MY(ULEV): 39108-2GGC2 | 5021 | |
| JF/JFA 2.4 GDI +IMMO/SMK 18MY(ULEV): 39108-2GGC7 | 5022 | |
| JF/JFA 2.4 GDI -IMMO 18MY(SULEV): 39108-2GGD2 | 5023 | |
| JF/JFA 2.4 GDI +IMMO/SMK 18MY(SULEV): 39108-2GGD7 | 5024 | |
| QL 2.4L | QL 2.4 GDI -IMMO 17MY(ULEV/2WD): 39100-2GHS0 | 5101 |
| QL 2.4 GDI +IMMO/SMK 17MY(ULEV/2WD): 39100-2GHR5 | 5102 | |
| QL 2.4 GDI -IMMO 17MY(ULEV/4WD): 39100-2GHT0 | 5103 | |
| QL 2.4 GDI +IMMO/SMK 17MY(ULEV/4WD): 39100-2GHS5 | 5104 | |
| QL 2.4 GDI -IMMO 17MY(SULEV/2WD): 39100-2GHV0 | 5105 | |
| QL 2.4 GDI +IMMO/SMK 17MY(SULEV/2WD): 39100-2GHT5 | 5106 | |
| QL 2.4 GDI -IMMO 17MY(SULEV/4WD): 39100-2GHW0 | 5107 | |
| QL 2.4 GDI +IMMO/SMK 17MY(SULEV/4WD): 39100-2GHV5 | 5108 | |
| QL 2.4 GDI -IMMO 18MY(ULEV/2WD): 39100-2GHS1 | 5109 | |
| QL 2.4 GDI +IMMO/SMK 18MY(ULEV/2WD): 39100-2GHR6 | 5110 | |
| QL 2.4 GDI -IMMO 18MY(ULEV/4WD): 39100-2GHT1 | 5111 | |
| QL 2.4 GDI +IMMO/SMK 18MY(ULEV/4WD): 39100-2GHS6 | 5112 | |
| QL 2.4 GDI -IMMO 18MY(SULEV/2WD): 39100-2GHV1 | 5113 | |
| QL 2.4 GDI +IMMO/SMK 18MY(SULEV/2WD): 39100-2GHT6 | 5114 | |
| QL 2.4 GDI -IMMO 18MY(SULEV/4WD): 39100-2GHW1 | 5115 | |
| QL 2.4 GDI +IMMO/SMK 18MY(SULEV/4WD): 39100-2GHV6 | 5116 |
AFFECTED VEHICLE RANGE
| Model | Production Date Range |
|---|---|
| 14MY Optima (TF) | August 29, 2013 to April 25, 2014 |
| 15-18MY Optima (TF/QF/JF/JFa) | April 16, 2014 to July 11, 2018 |
| 14-18MY Sportage (SL/QL) | September 30, 2013 to April 5, 2018 |
| 15-18MY Sorento (XMa/UMa) | January 3, 2014 to March 7, 2018 |
WARRANTY INFORMATION (PI1802A)
N Code: N99 C Code: C99
| Model | Claim Type | Causal P/N | Qty. | Repair Description | Labor Op Code | Op Time | Replacement P/N | Qty. |
|---|---|---|---|---|---|---|---|---|
| XMa (15MY) | R | 39113 2GBK1 | 0 | (PI1802 A ) KSDS - ECU Logic Improvement | 180A10R0 | 0.3 M/H | N/A | 0 |
| TF (14-15MY) | R | 39108 2GBE0 | 0 | (PI1802 A ) KSDS - ECU Logic Improvement | 180107R0 | 0.3 M/H | N/A | 0 |
| QF (15MY) | R | 39108 2GBH1 | 0 | (PI1802 A ) KSDS - ECU Logic Improvement | 180A15R0 | 0.3 M/H | N/A | 0 |
| SL (14-15MY) | R | 39107 2GCD5 | 0 | (PI1802 A ) KSDS - ECU Logic Improvement | 180108R0 | 0.3 M/H | N/A | 0 |
WARRANTY INFORMATION (PI1802A1)
N Code: N99 C Code: C99
| Model | Claim Type | Causal P/N | Qty. | Repair Description | Labor Op Code | Op Time | Replacement P/N | Qty. |
|---|---|---|---|---|---|---|---|---|
| TF (14-15MY) | R | 39108 2GBE0 | 0 | (PI1802 A 1) KSDS - ECU Logic Improvement | 180119R0 | 0.3 M/H | N/A | 0 |
| QF (15MY) | R | 39108 2GBH1 | 0 | (PI1802 A 1) KSDS - ECU Logic Improvement | 180A17R0 | 0.3 M/H | N/A | 0 |
WARRANTY INFORMATION (PI1802B)
N Code: N99 C Code: C99
| Model | Claim Type | Causal P/N | Qty. | Repair Description | Labor Op Code | Op Time | Replacement P/N | Qty. |
|---|---|---|---|---|---|---|---|---|
| SL (16MY) | R | 39107 2GCD5 | 0 | (PI1802 B ) KSDS - ECU Logic Improvement | 180108R0 | 0.3 M/H | N/A | 0 |
| JF (16MY) | R | 39108 2GGC5 | 0 | (PI1802 B ) KSDS - ECU Logic Improvement | 180109R0 | 0.3 M/H | N/A | 0 |
| JFa (16MY) | R | 39108 2GTK5 | 0 | (PI1802 B ) KSDS - ECU Logic Improvement | 180A25R0 | 0.3 M/H | N/A | 0 |
| UMa (16MY) | R | 39100 2GGF0 | 0 | (PI1802 B ) KSDS - ECU Logic Improvement | 180A26R0 | 0.3 M/H | N/A | 0 |
WARRANTY INFORMATION (PI1802C)
N Code: N99 C Code: C99
| Model | Claim Type | Causal P/N | Qty. | Repair Description | Labor Op Code | Op Time | Replacement P/N | Qty. |
|---|---|---|---|---|---|---|---|---|
| QL (17MY) | R | 39100 2GHS0 | 0 | (PI1802 C ) KSDS - ECU Logic Improvement | 180110R0 | 0.3 M/H | N/A | 0 |
| JF (17MY) | R | 39108 2GGC5 | 0 | (PI1802 C ) KSDS - ECU Logic Improvement | 180109R0 | 0.3 M/H | N/A | 0 |
| JFa (17MY) | R | 39108 2GTK5 | 0 | (PI1802 C ) KSDS - ECU Logic Improvement | 180A27R0 | 0.3 M/H | N/A | 0 |
| UMa (17MY) | R | 39100 2GGF0 | 0 | (PI1802 C ) KSDS - ECU Logic Improvement | 180A28R0 | 0.3 M/H | N/A | 0 |
WARRANTY INFORMATION (PI1802D)
N Code: N99 C Code: C99
| Model | Claim Type | Causal P/N | Qty. | Repair Description | Labor Op Code | Op Time | Replacement P/N | Qty. |
|---|---|---|---|---|---|---|---|---|
| QL (18MY) | R | 39100 2GHS0 | 0 | (PI1802 D ) KSDS - ECU Logic Improvement | 180110R0 | 0.3 M/H | N/A | 0 |
| JF (18MY) | R | 39108 2GGC5 | 0 | (PI1802 D ) KSDS - ECU Logic Improvement | 180109R0 | 0.3 M/H | N/A | 0 |
| JFa (18MY) | R | 39108 2GTK5 | 0 | (PI1802 D ) KSDS - ECU Logic Improvement | 180A29R0 | 0.3 M/H | N/A | 0 |
| UMa (18MY) | R | 39100 2GGF0 | 0 | (PI1802 D ) KSDS - ECU Logic Improvement | 180A30R0 | 0.3 M/H | N/A | 0 |
NOTE:
VIN inquiry data for this repair is provided for tracking purposes only. Kia retailers should reference PI1802*
when accessing the WebDCS system.
