Variant Coding Procedure
- On-Line type on KDS/GDS
- Ignition "OFF", connect KDS/GDS.
- Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
- Select Variant coding mode.
- Follow steps on the screen as below.

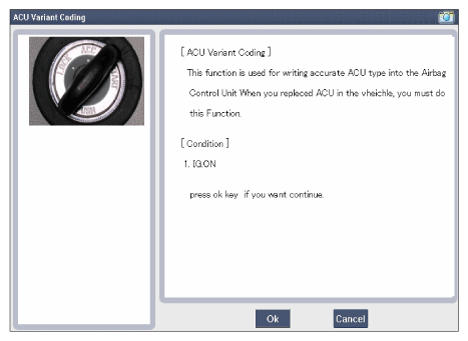

- Initial ACU Variant Coding screen
Courtesy of KIA MOTORS AMERICA, INC.

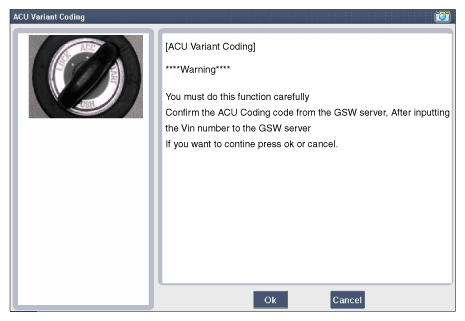

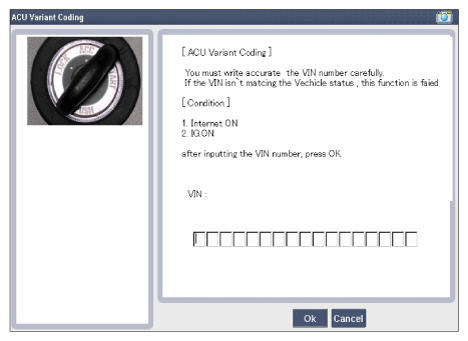

- VIN Code entering screen
Courtesy of KIA MOTORS AMERICA, INC.

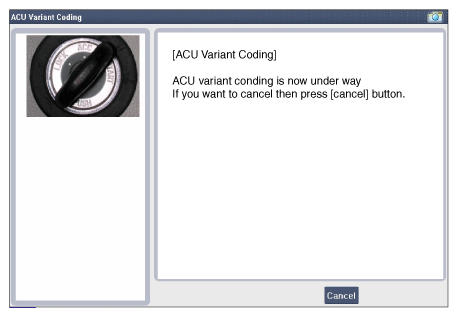

- Variant coding's proceeding screen-1
Courtesy of KIA MOTORS AMERICA, INC.

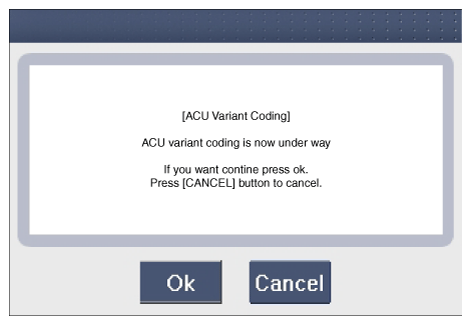

- Variant coding's proceeding screen-2
Courtesy of KIA MOTORS AMERICA, INC.

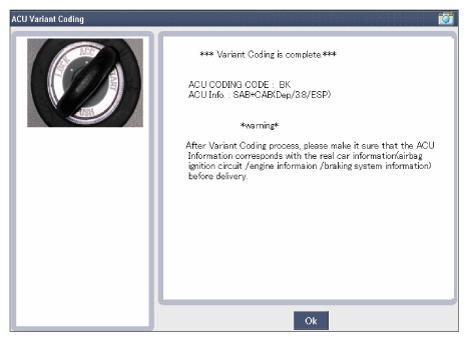

- Variant coding is completed
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- This screen is opened when you try the variant coding again on the SRSCM which has bee performed variant coding.
Courtesy of KIA MOTORS AMERICA, INC.

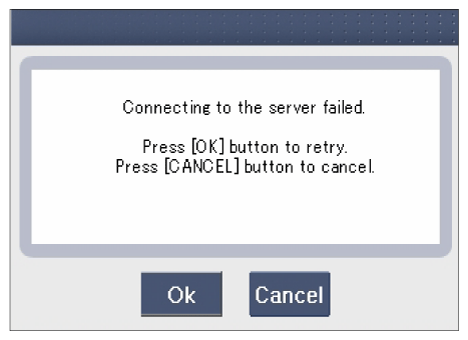

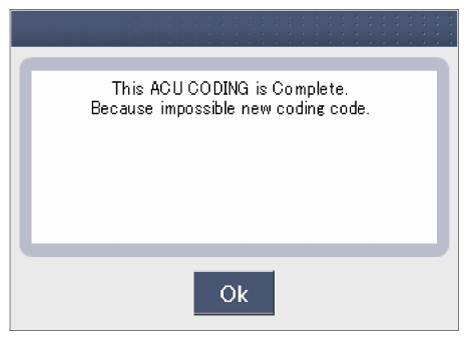

- Screen of communication failure
Courtesy of KIA MOTORS AMERICA, INC.
- Off-line type on KDS/GDS (This can be used when not connecting to internet)
- Initial ACU Variant Coding screen
Courtesy of KIA MOTORS AMERICA, INC.

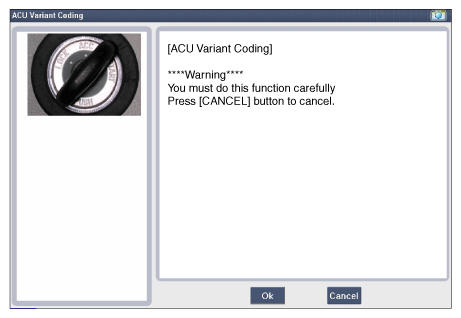

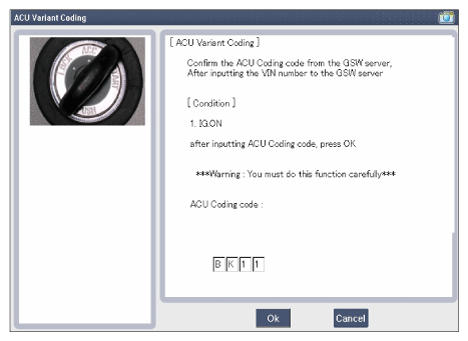

- ACU Coding Code entering screen
Courtesy of KIA MOTORS AMERICA, INC.
- Screen of rechecking ACU Coding code's entering
Courtesy of KIA MOTORS AMERICA, INC.

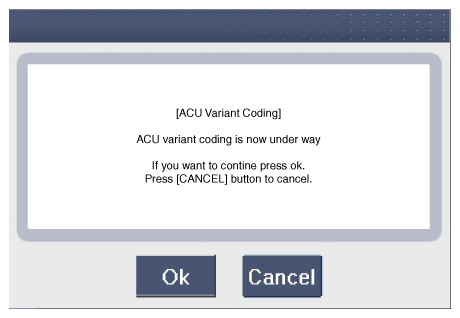

- Variant coding's proceeding screen-1
Courtesy of KIA MOTORS AMERICA, INC.
- Variant coding's proceeding screen-2
Courtesy of KIA MOTORS AMERICA, INC.
- Variant coding is completed
Courtesy of KIA MOTORS AMERICA, INC.

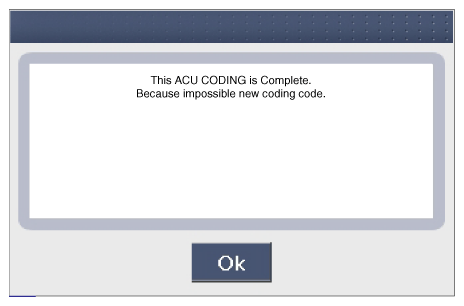

NOTE:
- This screen is opened when you try the variant coding again on the SRSCM which has been performed variant coding.
Courtesy of KIA MOTORS AMERICA, INC.
