Repair Procedures: Inspection

  1. Disconnect the hood switch connector (A).
    Fig 1: Disconnecting Hood Switch Connector
    G11845299Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between terminals

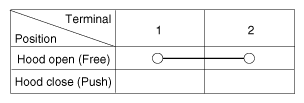

Fig 2: Hood Switch Continuity Terminals Chart
G11845300Courtesy of KIA MOTORS AMERICA, INC.
