Engine Control System Diagnosis (1 Of 3)
>>
DTC P0112: Intake Air Temperature Sensor 1 Circuit Low Input
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram
Fig 1: Intake Air Temperature Sensor Diagnostic Circuit
Courtesy of KIA MOTORS AMERICA, INC.

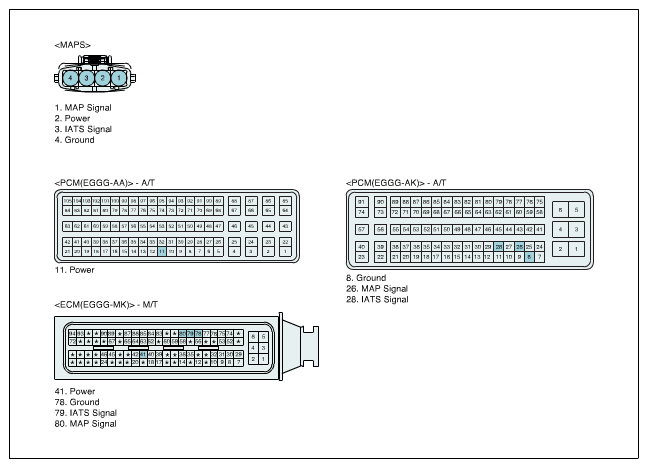

Fig 2: Intake Air Temperature Sensor Connector Terminal
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
