Diagnostic Circuit Diagram

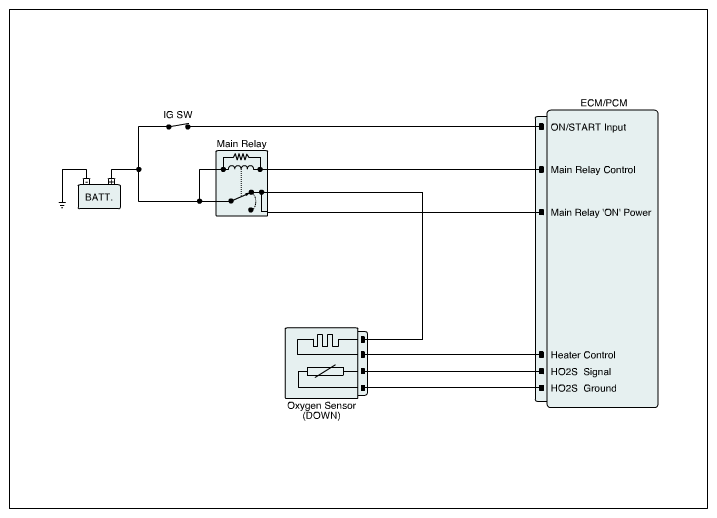

Fig 1: O2 Sensor Heater Diagnostic Circuit
G11847311Courtesy of KIA MOTORS AMERICA, INC.

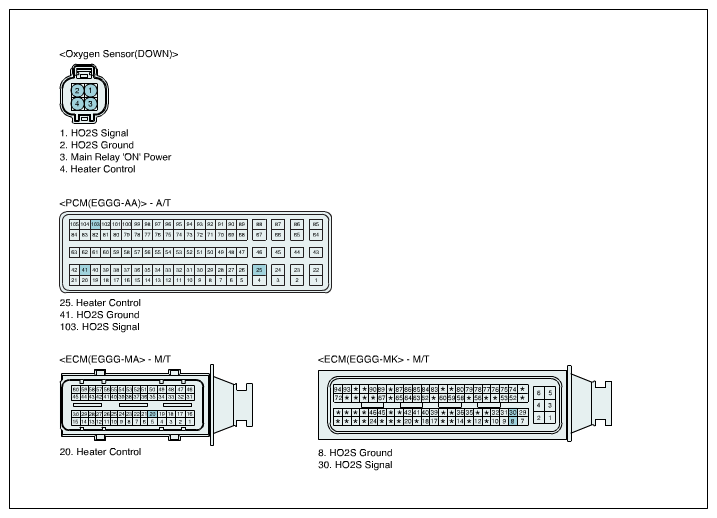

Fig 2: O2 Sensor Heater Connector Terminal
G11847312Courtesy of KIA MOTORS AMERICA, INC.
