Power Circuit Inspection

■ Check Voltage

1. IG "OFF" and disconnect APS connector.
2. IG "ON".
3. Measure voltage between APS1 power terminal of APS harness connector and chassis ground.

   Specification:  Approx. 5V

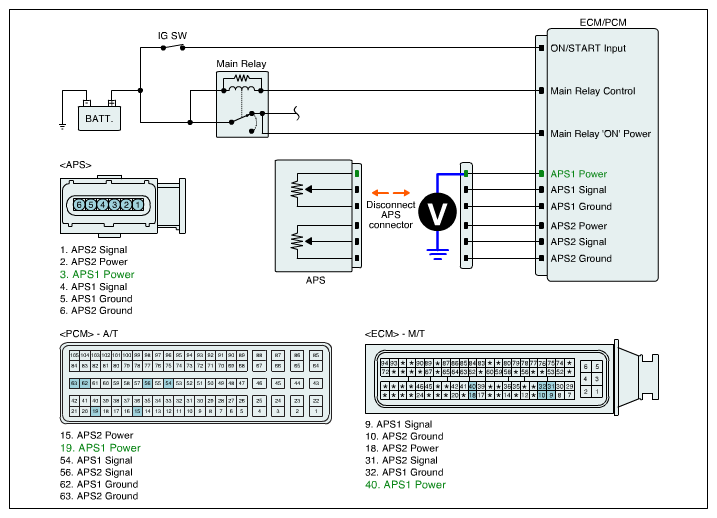

   Fig 1: Measuring Voltage Between APS1 Power Terminal Of APS Harness Connector And Chassis Ground

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured voltage within specification?

   YES

   • Go to "SIGNAL CIRCUIT INSPECTION " Procedure.

   NO

   • Repair open or short in harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
