AVN (A/V & Navigation) Head Unit Connector

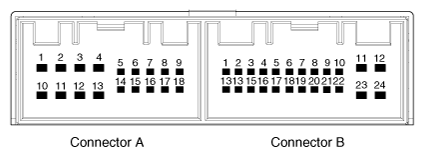

Fig 1: AVN (A/V & Navigation) Head Unit Connector Terminals
G11846502Courtesy of KIA MOTORS AMERICA, INC.
No. Connector A Connector B
1 Rear left speaker + -
2 Front left speaker + -
3 Front right speaker + -
4 Rear right speaker + Steer key
5 Back view camera ground -
6 Back view camera power IGN1
7 ALT_L -
8 Illumination + AUX audio R
9 Reverse A GND
10 Rear left speaker - MIC +
11 Front left speaker - ACC
12 Front right speaker - Battery +
13 Rear right speaker - -
14 Back view camera video ground Auto light
15 Back view camera video power P position
16 Door unlock Speed
17 Illumination - KEY GND
18 Antenna power -
19   -
20 AUX audio detect
21 AUX audio_L
22 MIC -
23 Ground
24 Ground

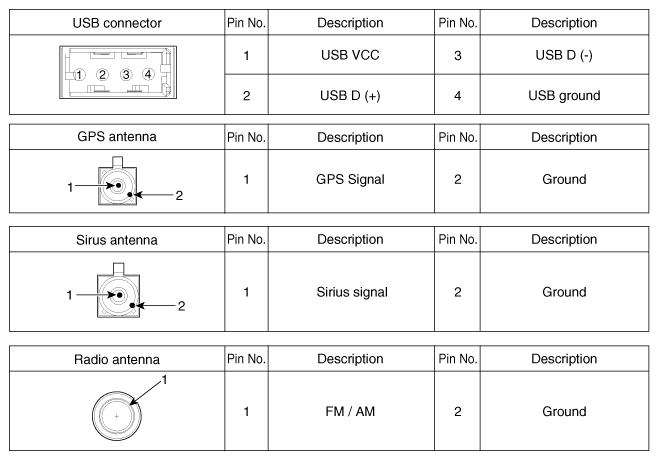

Fig 2: AVN Head Unit Connectors Reference Chart
G11846503Courtesy of KIA MOTORS AMERICA, INC.

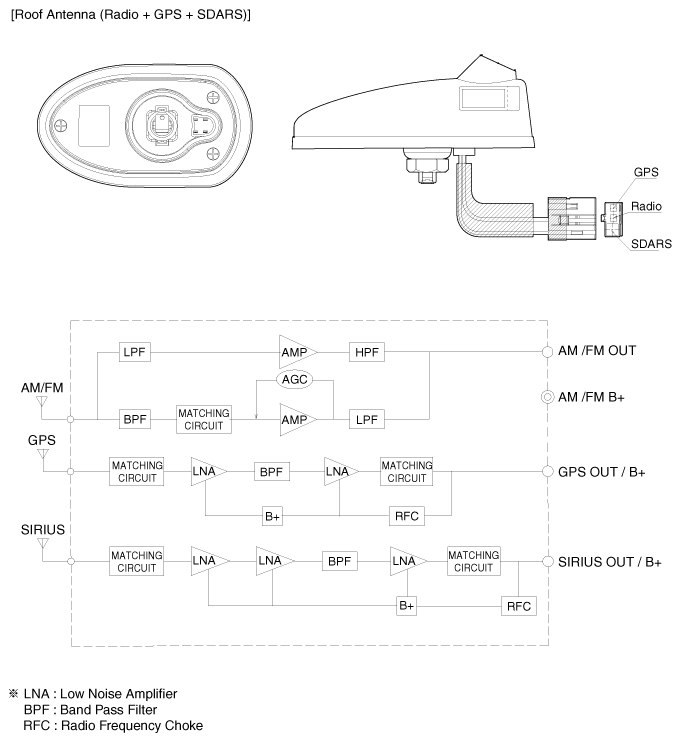

Fig 3: AVN Head Unit Communication Diagram - Roof Antenna (Radio + GPS + SDARS)
G11846504Courtesy of KIA MOTORS AMERICA, INC.
